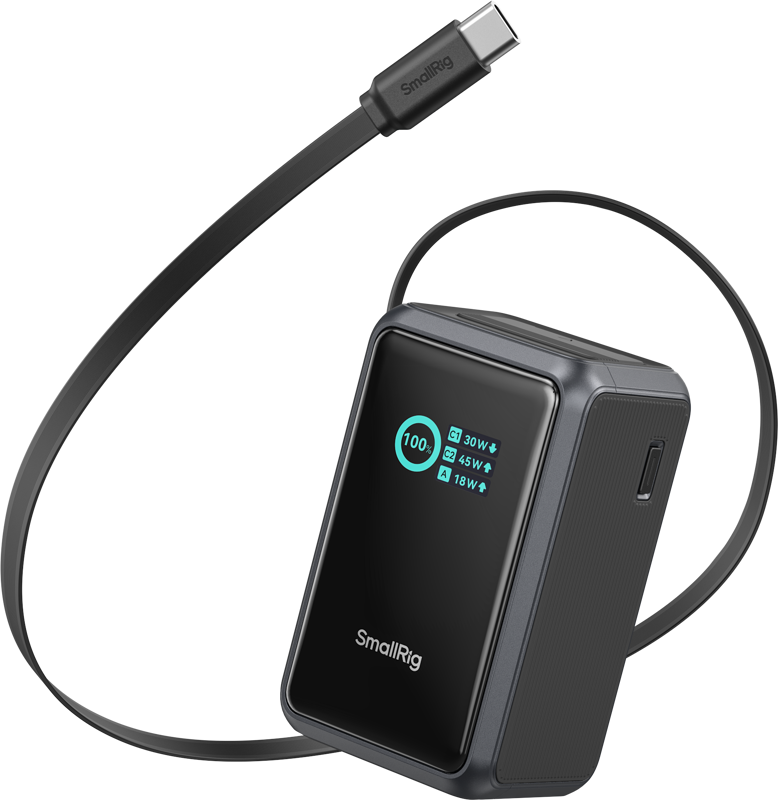

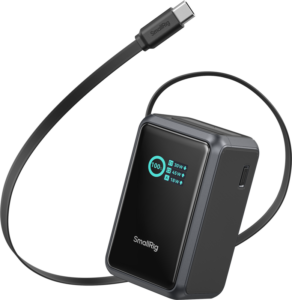

The SmallRig 6057 Nano36 Power Bank is a compact V-mount power bank designed for use with cameras, mobile devices and action cameras. A retractable USB-C cable, a USB-C port and a USB-A port make it easy to charge multiple devices throughout a day’s shoot.

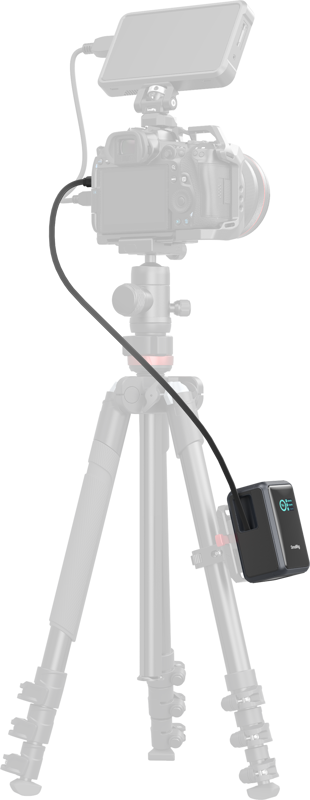

Mounting on camera equipment

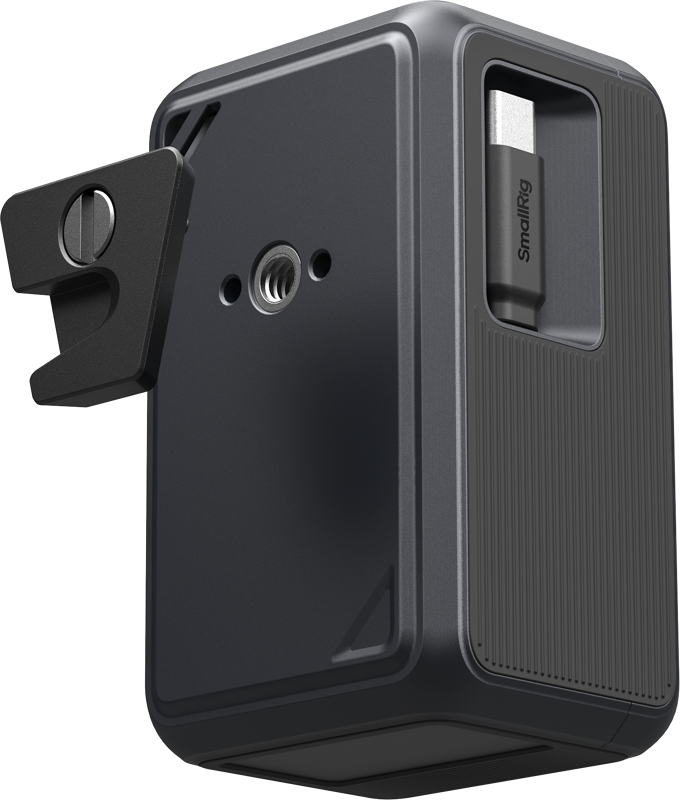

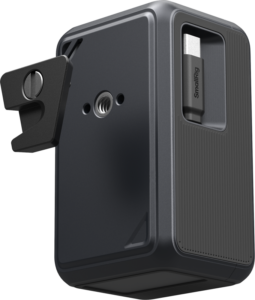

Takapuolella oleva 1/4″-20-kierteinen reikä ja kiinnitysreikä mahdollistavat käytön erilaisissa kuvausrigiratkaisuissa. Metallinen V-mount-kiinnityslevy voidaan kiinnittää 1/4″-20-ura-ruuvilla V-mount-asennuksia varten.

Various charging methods

The power bank features a built-in retractable USB-C cable, as well as separate USB-C and USB-A ports. One USB-C output supports up to 45 W of output power, whilst the USB-A port provides up to 22.5 W of output when used as a single port.

Main features

• A V-mount-type backup power supply for powering cameras and mobile devices
• A retractable USB-C cable reduces the need for separate cables
• The USB-C cable, USB-C port and USB-A port offer a range of connection options
• 1/4″-20-kierre ja kiinnitysreikä takapuolella helpottavat asentamista kuvauskalustoon
• Suitable for V-mount installations with a metal V-mount mounting plate
• Compatible with a range of iPhone, AirPods and Apple Watch models, as well as selected DJI, Insta360, Canon, Blackmagic, Nikon and Panasonic devices

Technical specifications

• Battery capacity: 10,000 mAh (5,000 mAh × 2, two batteries in series)
• Input, USB-C cable / USB-C port: 5.0 V⎓3.0 A; 9.0 V⎓3.0 A; 12.0 V⎓2.5 A; 15.0 V⎓2.0 A (maximum 30.0 W)
• Output, one port in use, USB-C cable / USB-C port: 5.0 V⎓3.0 A; 9.0 V⎓3.0 A; 12.0 V⎓3.0 A; 15.0 V⎓3.0 A; 20.0 V⎓2.25 A (up to 45.0 W)
• Output, one port in use, USB-A port: 5.0 V⎓3.0 A; 9.0 V⎓2.0 A; 10.0 V⎓2.25 A; 12.0 V⎓1.5 A (up to 22.5 W)
• Output, two ports in use, USB-C cable + USB-C port: 10.0 W + 10.0 W
• Output, two ports in use, USB-C cable / USB-C port + USB-A port: 10.0 W + 10.0 W
• Output, three ports in use, USB-C cable + USB-C port + USB-A port: 7.0 W + 7.0 W + 6.0 W
• Total output across multiple ports: 5.0 V × 4.0 A (maximum 20.0 W)
• USB-A’s default low-power mode: when the load current is less than 100 mA, the display and output switch off after two hours, and the device enters sleep mode
• Product dimensions: 52.7 × 68.5 × 52.6 mm
• Product weight: 292 g
• Manufacturer’s product number: 6057
• EAN: 6941590032979
