SmallRig 6537 Dummy Battery Power Cable for D-tap for the Nikon EN-EL15c battery

SmallRig 6537 Dummy Battery Power Cable for D-tap for the Nikon EN-EL15c battery

The SmallRig 6537 is an EN-EL15c-compatible dummy battery power cable that allows a Nikon camera to be powered by an external power source via the D-Tap connector. It is ideal for long video shoots, live streams and other shooting situations where minimising battery changes is important.

External power for long filming sessions

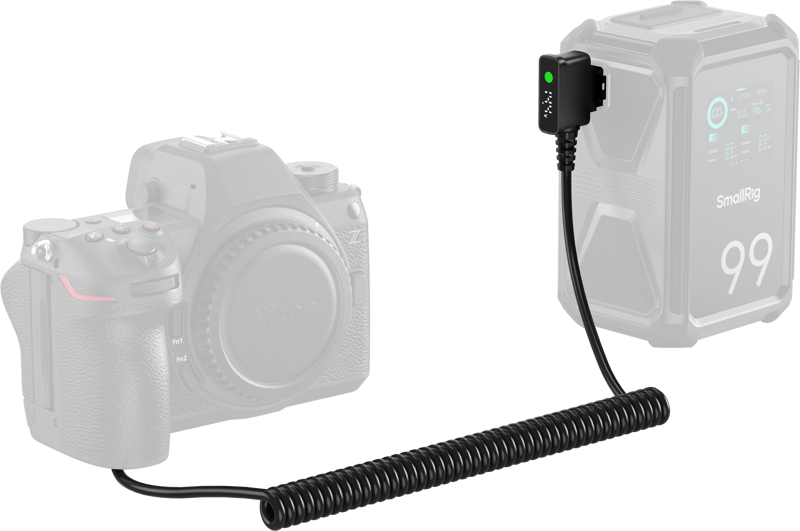

The cable is connected via a D-Tap connector to, for example, a V-mount battery, providing the camera with a continuous power supply when used with compatible Nikon bodies. Indicator lights and a voltage display show the status of the power source and warn of low voltage or a D-Tap connection that is connected the wrong way round.

Main features

• Enables a Nikon camera to be powered from an external power source via the D-Tap connector
• Suitable for long video recordings, live streaming and other extended filming sessions
• Reduces the need to repeatedly change the camera’s battery whilst filming

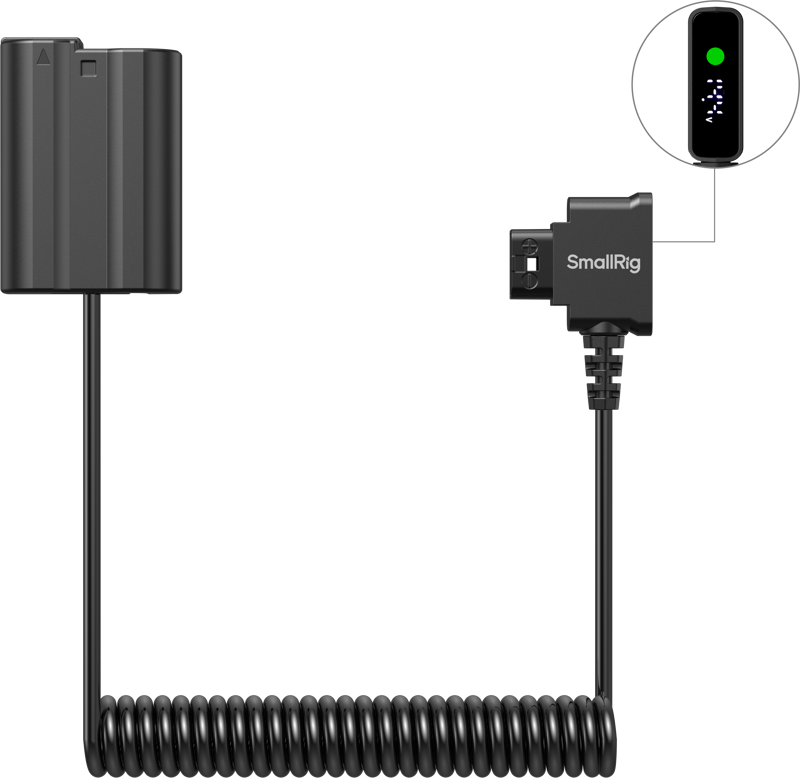

• The coiled cable extends from 80.0 cm to 100.0 cm
• The indicator lights show the power level and warn of an incorrect D-Tap connection
• Compatible with Nikon Z8, Zf, Z6III, Z7II, Z6II, Z5, D850, D780, D500 and D7500 cameras

Technical specifications

• Model: 6537

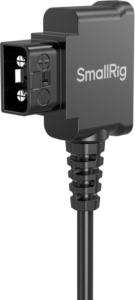

• Connector: D-Tap
• Camera brand: nikon

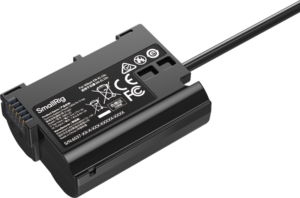

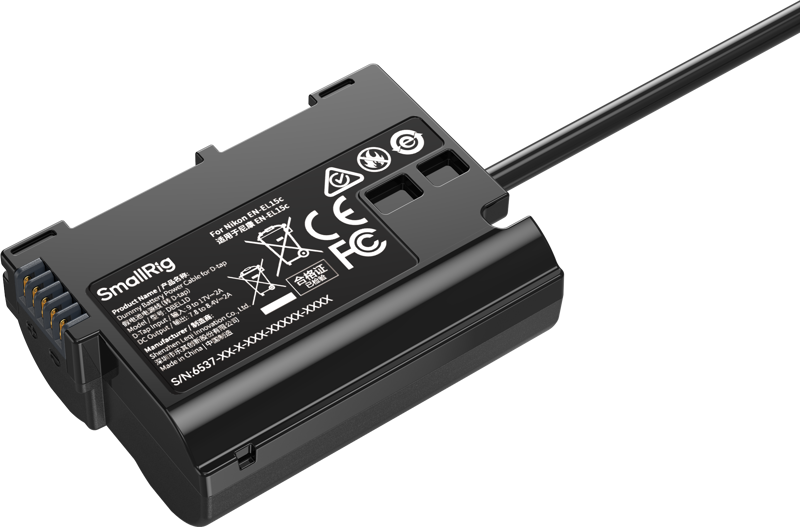

• Compatible battery type: Nikon EN-EL15c
• Input voltage: 9.0–17.0 V
• Input current: 2.0 A
• Maximum output voltage: 8.4 V
• Minimum output voltage: 7.8 V
• Output current: 2.0 A continuous
• Overcurrent protection current: 4.5–5.5 A
• Operating temperature: -20 °C – 50 °C
• Storage temperature: -20 °C – 60 °C

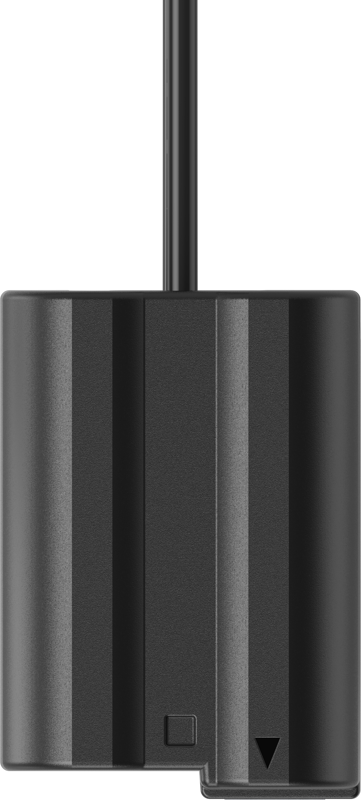

• Material of the dummy battery casing: ABS

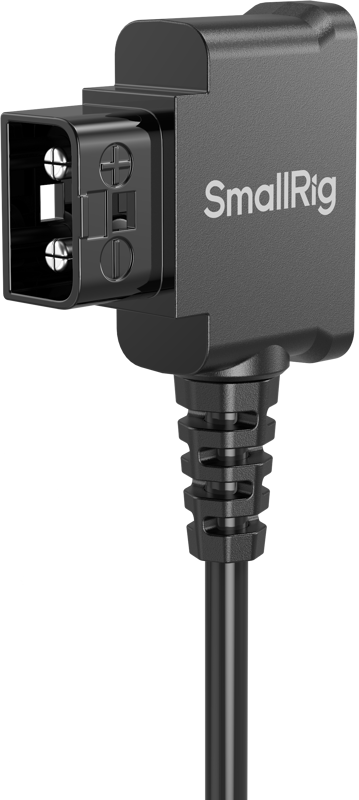

• Input connector: D-Tap male connector
• Cable length: coiled cable 80.0–100.0 cm
• Green light and voltage display: input voltage above 13.0 V
• A red light or a flashing red light and the voltage display: input voltage below 13.0 V
• Red light with no voltage display: D-Tap supply connected the wrong way round; reverse polarity protection has been activated
• Compatible cameras: Nikon Z8, Zf, Z6III, Z7II, Z6II, Z5, D850, D780, D500 and D7500
• EAN: 6941590033631
