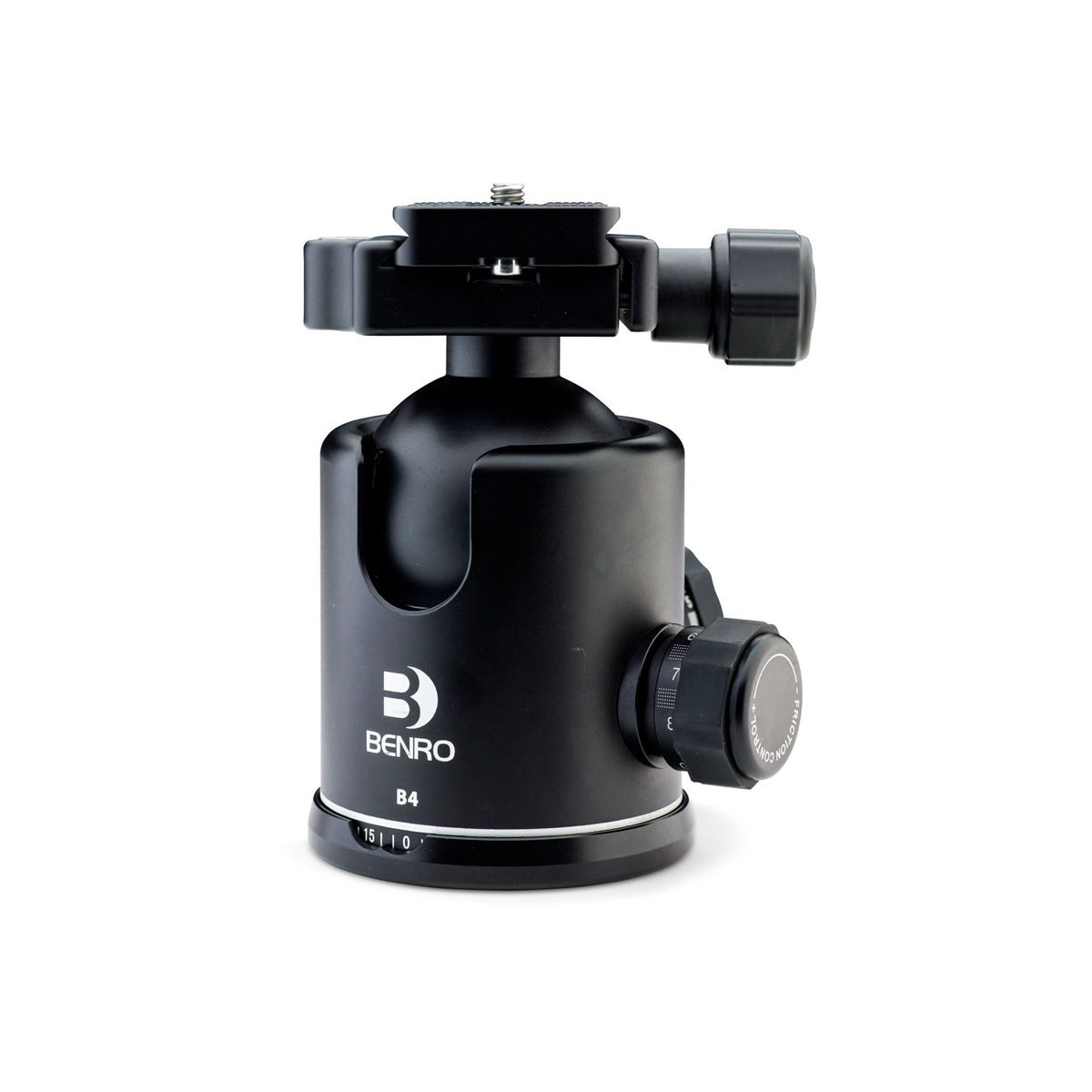

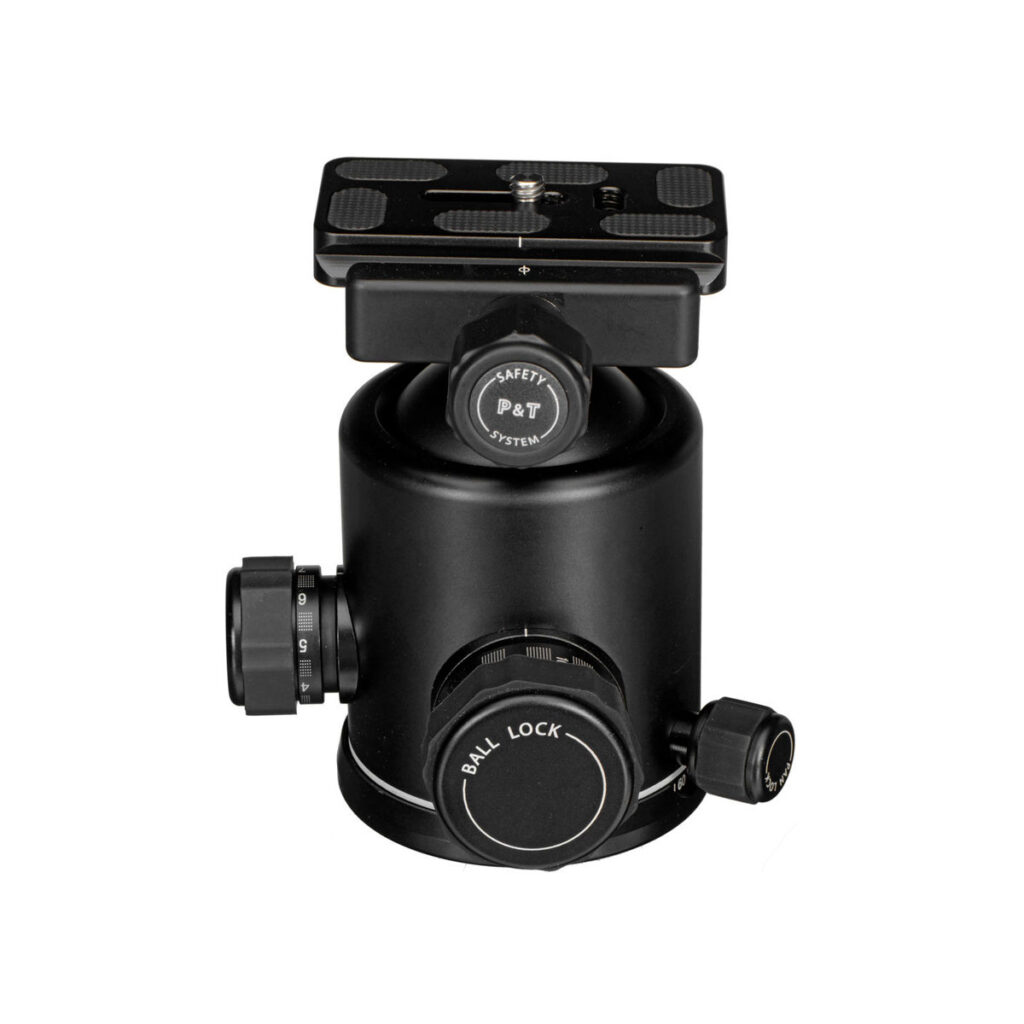

Benro B4 + PU70 ball head

Benro B4 + PU70 ball head

The Benro B4 is a sturdy ball head for tripod photography when you need to change the camera’s angle quickly and precisely. It is suitable for stills and video photography as well as for use with a telescope, and the included PU-70 quick-release plate makes it easier to balance the camera.

Controlled movement and quick locking

The adjustable mounting and locking system allows you to adjust the stiffness of the ball’s movement. The camera can be moved smoothly without the need for constant adjustment of the clamping levers, whilst the head still provides sufficient support for the shooting situation.

A design suitable for panoramic photography

The ball head features 360-degree horizontal rotation with a lock and a scale, which aids in reproducible panning movements. Horizontal movement is also possible when the ball is locked.

Main features

• The PU-70 quick-release plate has approximately 4 cm of longitudinal adjustment to position the camera’s centre of gravity.
• The safety pins on the underside of the disc help to prevent the disc from coming loose in extreme positions.
• The friction control allows you to adjust the resistance of the ball to suit the shooting situation.
• The 360-degree horizontal rotation with a scale enables precise panoramic photography.
• The Arca-Swiss-compatible quick-release system makes it easy to use compatible plates.
• Compatible with Benro, Manfrotto and Slik tripods.

Technical specifications

• Maximum load: 20 kg
• Weight: 0,72 kg
• Quick-release plate: PU-70
• Longitudinal adjustment range of the PU-70 panel: approximately 4 cm
• Horizontal rotation: 360°
• Base mounting threads: 3/8" and 1/4"
• Compatibility: Arca-Swiss quick-release system; Benro, Manfrotto and Slik tripods
• Uses: still photography, video recording and telescopes
• SKU: 52B4
