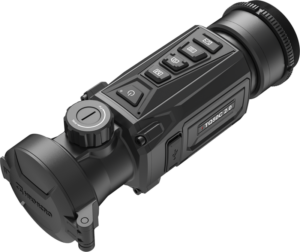

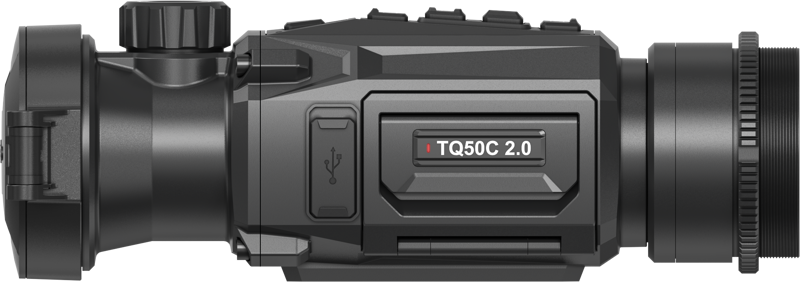

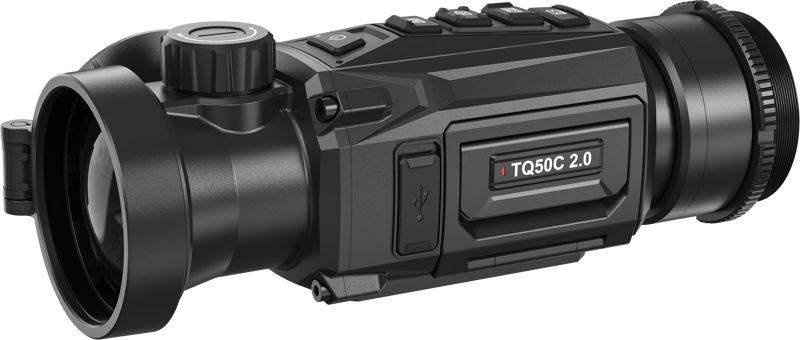

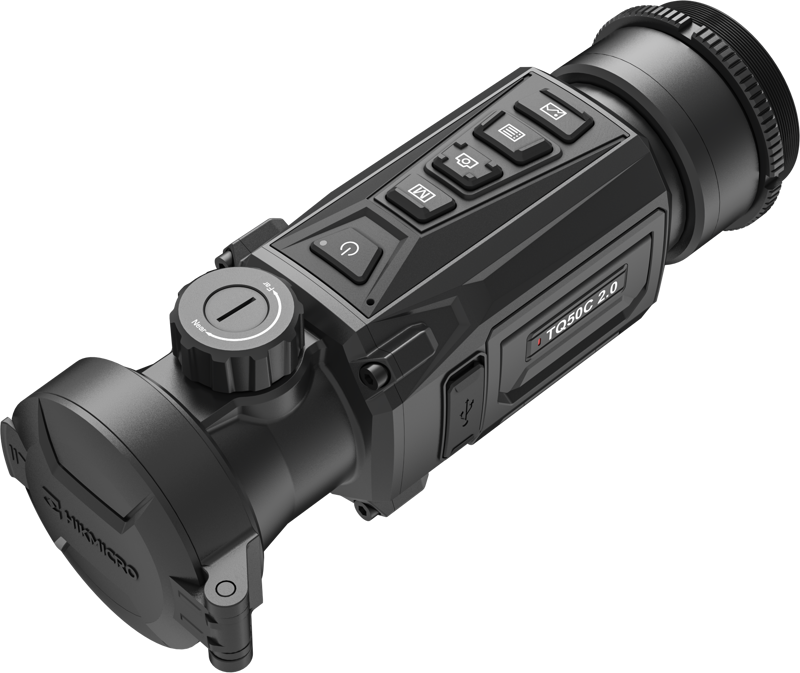

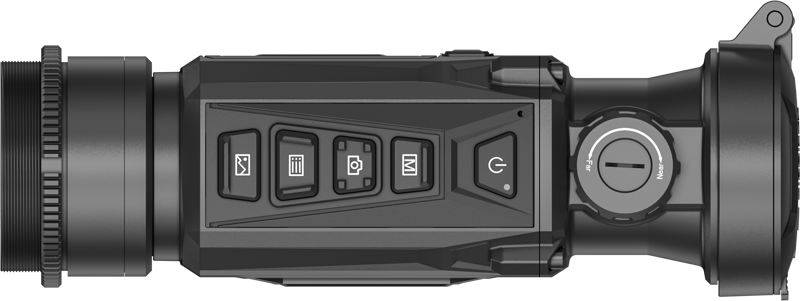

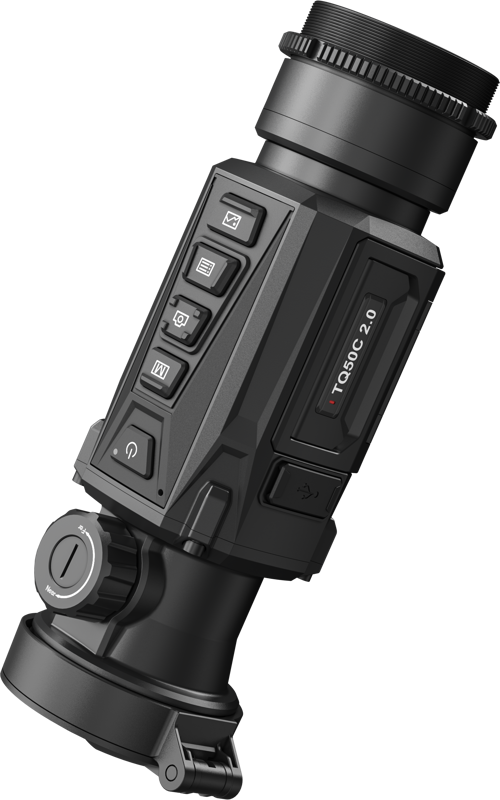

Hikmicro Thunder 2.0 TQ50C Thermal Scope

Hikmicro Thunder 2.0 TQ50C Thermal Scope

The HIKMICRO Thunder 2.0 TQ50C is a high-performance thermal imaging unit for reliable observation in the dark, fog and challenging light. A large thermal detector and high thermal sensitivity help to distinguish targets from the background even when temperature differences are small.

Detailed thermal image in difficult conditions

A 640 × 512 thermal detector and NETD < 20 mK thermal sensitivity bring out subtle temperature differences. Multiple viewing palettes help tailor the view to the situation: Black Hot and White Hot support rapid detection, while Red Hot and Fusion highlight thermal signatures in different ways.

For longer-distance observation

The 50 mm F1.0 lens efficiently gathers thermal radiation and supports target identification in open terrain. A detection range of up to 2,600 metres provides time to assess the target before approaching or tracking it.

Storage and field use

Internal video recording, screenshots and 16 GB of storage enable observations to be documented without a separate recorder. Hot Track highlights the hottest spot in the view, distance measurement helps to gauge proportions, and the IP67-rated design supports use in demanding outdoor conditions.

Main features

• Helps to detect thermal signatures in the dark, fog and challenging lighting conditions.
• Large thermal detector and high thermal sensitivity improve target discrimination against the background.
• The 50 mm F1.0 lens supports longer-distance observation.
• The 1024 × 768 OLED display makes it easier to interpret small details.
• Hot Track directs attention to the hottest point in the view, and distance measurement supports the estimation of distances.
• Internal video recording, screenshots, audio recording and recoil-activated recording.
• Up to 5 reset profiles for different settings or mounting solutions.
• Interchangeable rechargeable Li-ion battery system and USB-C external power support for longer operating periods.

Technical specifications

• Thermal detector: 640 × 512, 12 μm
• Refresh rate: 50 Hz
• Temperature sensitivity: NETD < 20 mK (25 °C, F#=1.0)
• Lens: 50 mm F1.0
• Detection range: up to 2600 m
• Display: 0.39″ OLED, 1024 × 768
• Viewing palettes: Black Hot, White Hot, Red Hot, Fusion
• Internal storage: 16 GB
• Reset profiles: maximum 5
• Protection class: IP67
• Power solution: exchangeable rechargeable Li-ion battery system, USB-C external power support
• Product number: 135294
• Manufacturer's part number: 308100767
• EAN: 6974004643065
