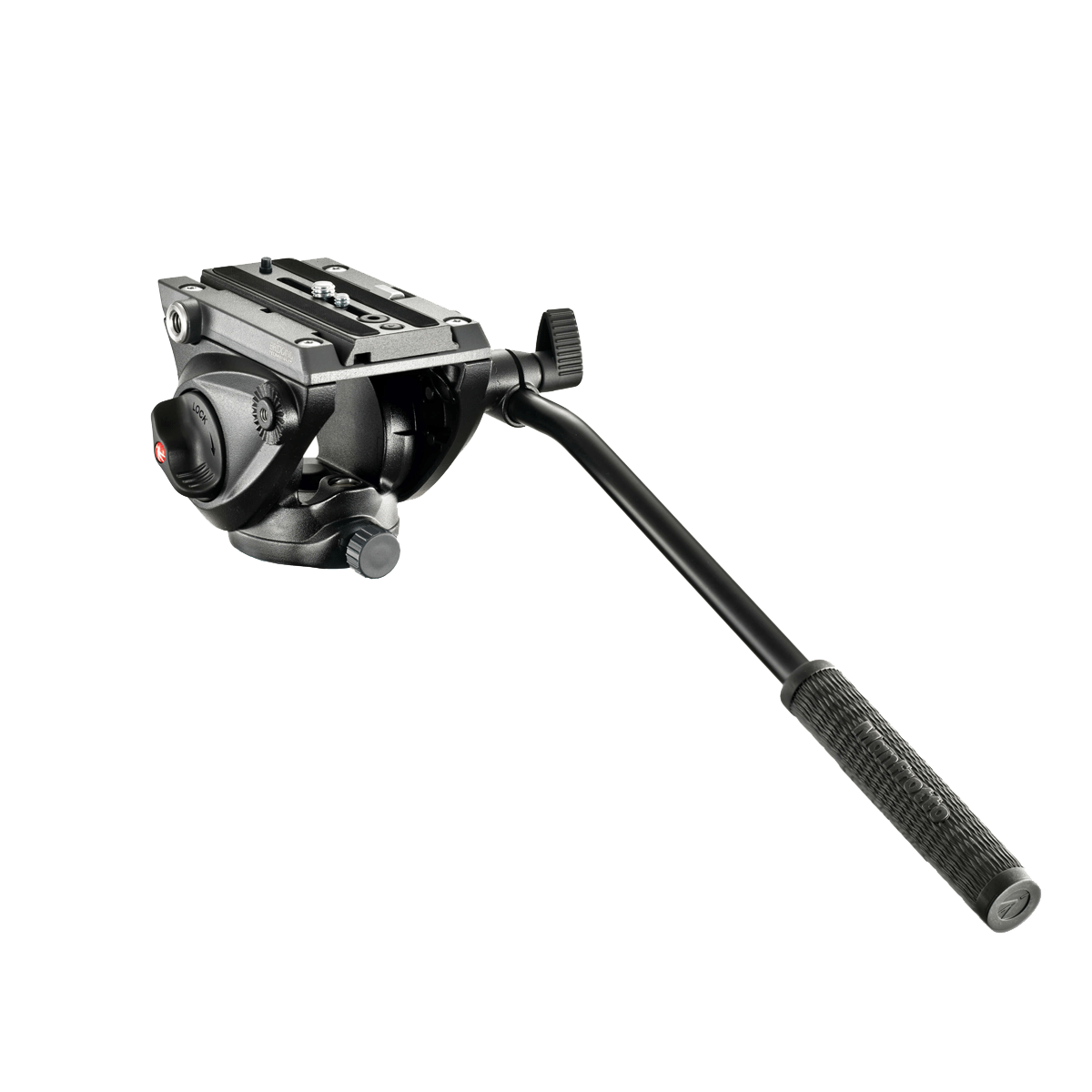

Manfrotto MVH500AH video head

Manfrotto MVH500AH video head

The MVH500AH is a fluid-damped video head designed for video filming and for use with tripods featuring a 3/8" head mount. It is suitable for camera and lens combinations weighing up to 5 kg, and its adjustable counterweight helps to balance even front-heavy set-ups.

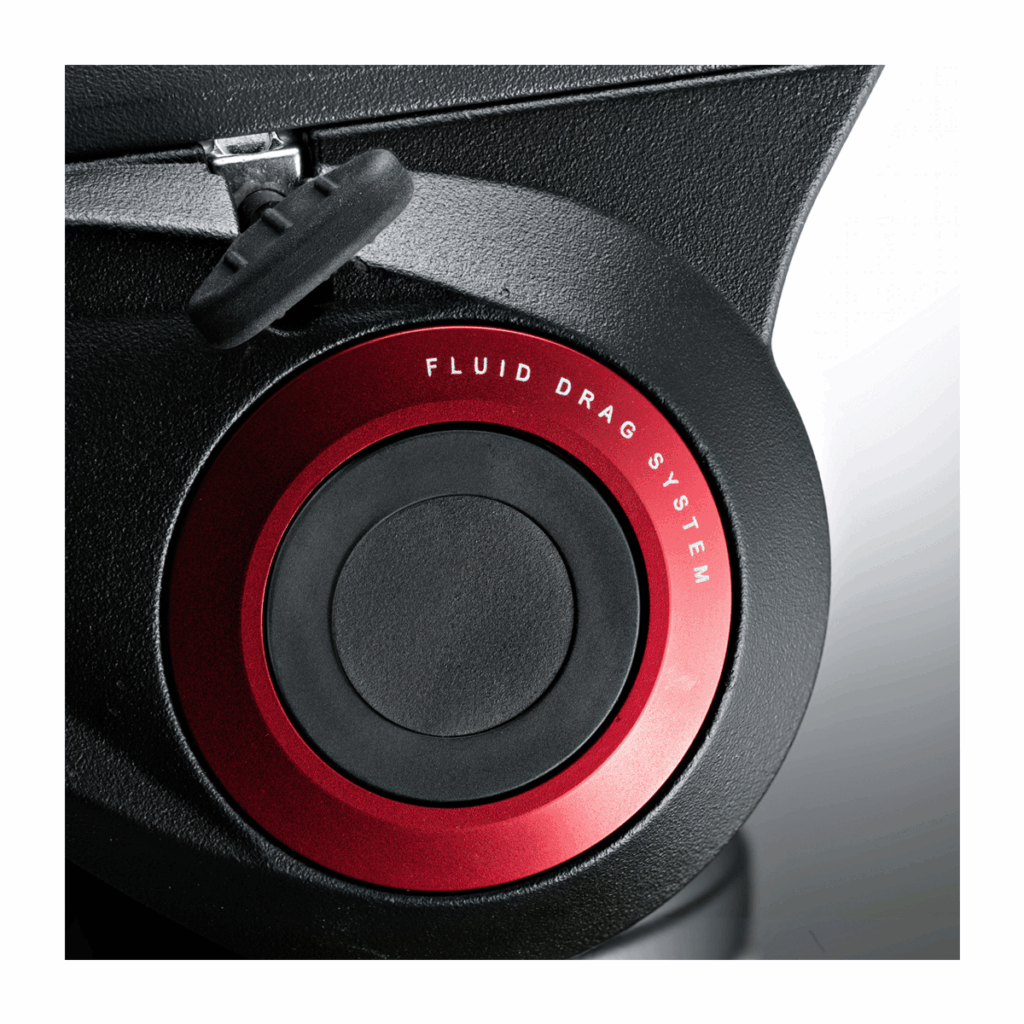

Fluid-smoothed motion for video

Fluid damping helps to produce controlled panning and tilting movements. The head offers 360-degree panning and a wide vertical range of -70° to +90°.

High-speed drive and accessory bay

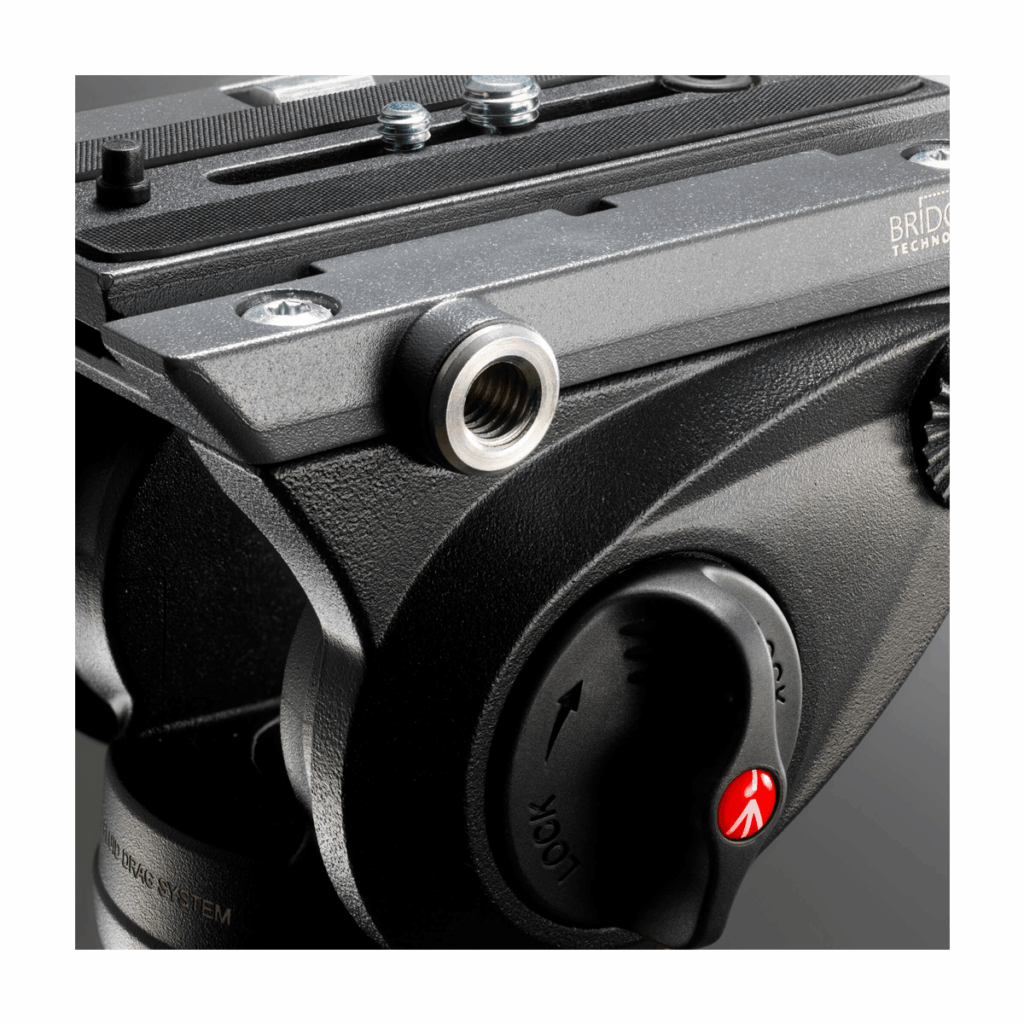

The drop-in quick-release plate can be fitted from above without having to slide the plate into place. The 3/8" mounting on the left-hand side of the video head is designed, for example, for attaching a microphone.

Main features

• The fluid-damped design ensures smooth movement during video recording.
• The drop-in quick-release plate speeds up the process of attaching the camera, as it is a top-loading solution.
• The adjustable counterweight helps to balance front-heavy camera and lens combinations.
• Suitable for Manfrotto tripods and other tripods with a 3/8" thread on the tripod head.
• The 3/8" accessory mount on the side allows you to attach a microphone, for example.
• The handle can be fitted on the left or right-hand side.
• The built-in spirit level helps you to level the camera.

Technical specifications

• Model / SKU: MVH500AH
• Type: fluid-damped video head
• Maximum load: 5 kg
• Counterweight: up to 2.4 kg, adjustable at the top
• Vertical tilt: -70° / +90°
• Panorama: 360°
• Height: 9,5 cm
• Weight: 930 g
• Tripod mount: 3/8"
• Quick-release plate fittings: 1/4" and 3/8"
• Accessory mounting: 3/8" on the left-hand side of the video head
• Operating temperature: -20 – +60 °C
