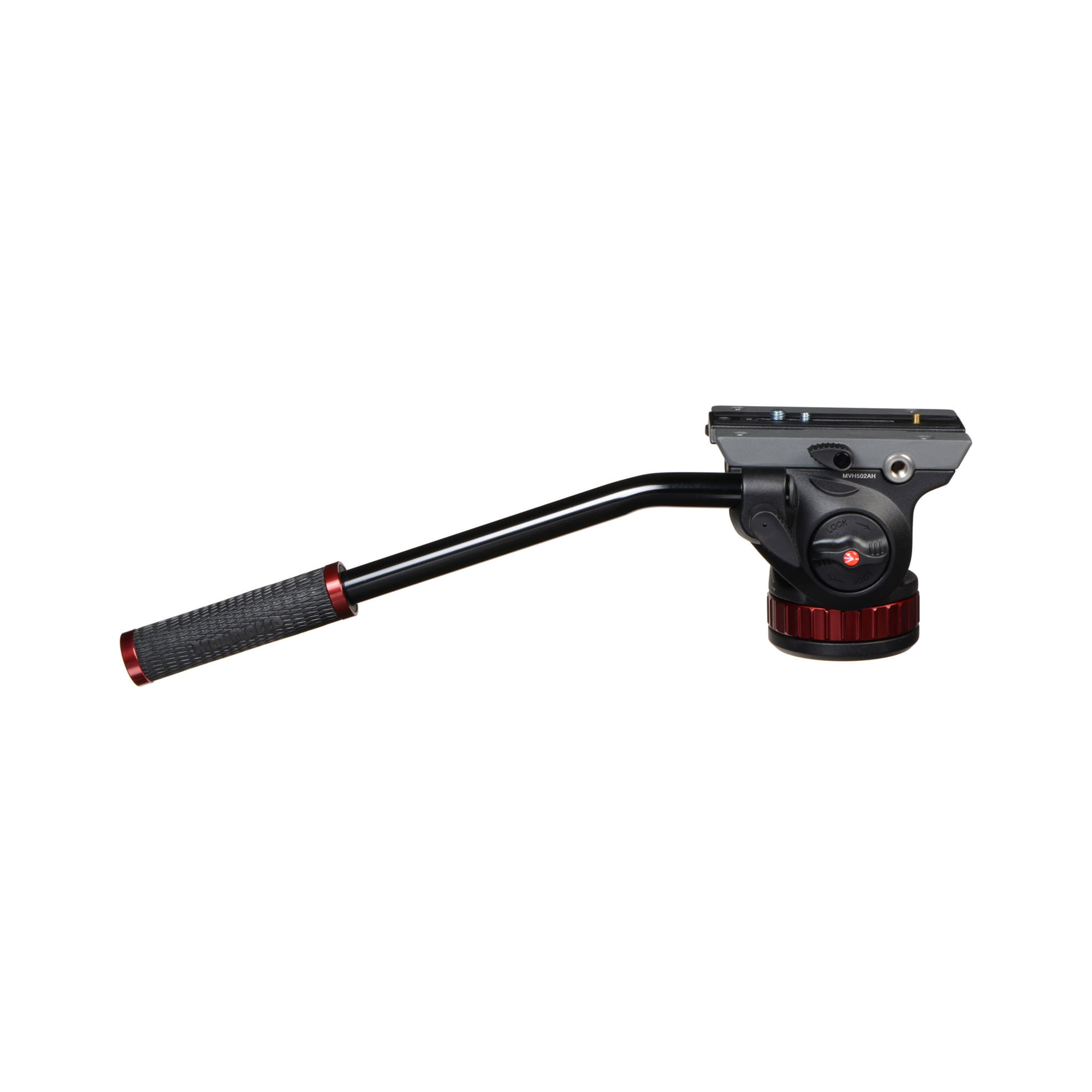

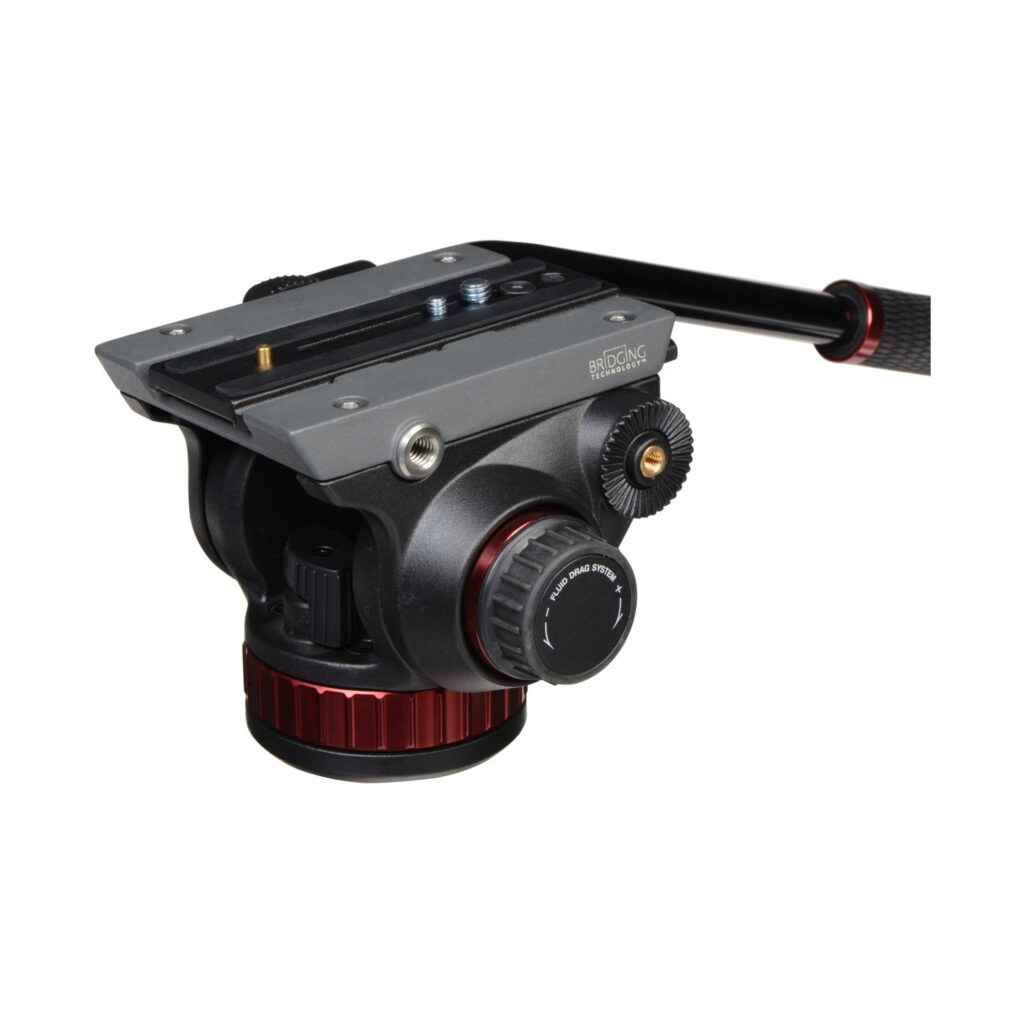

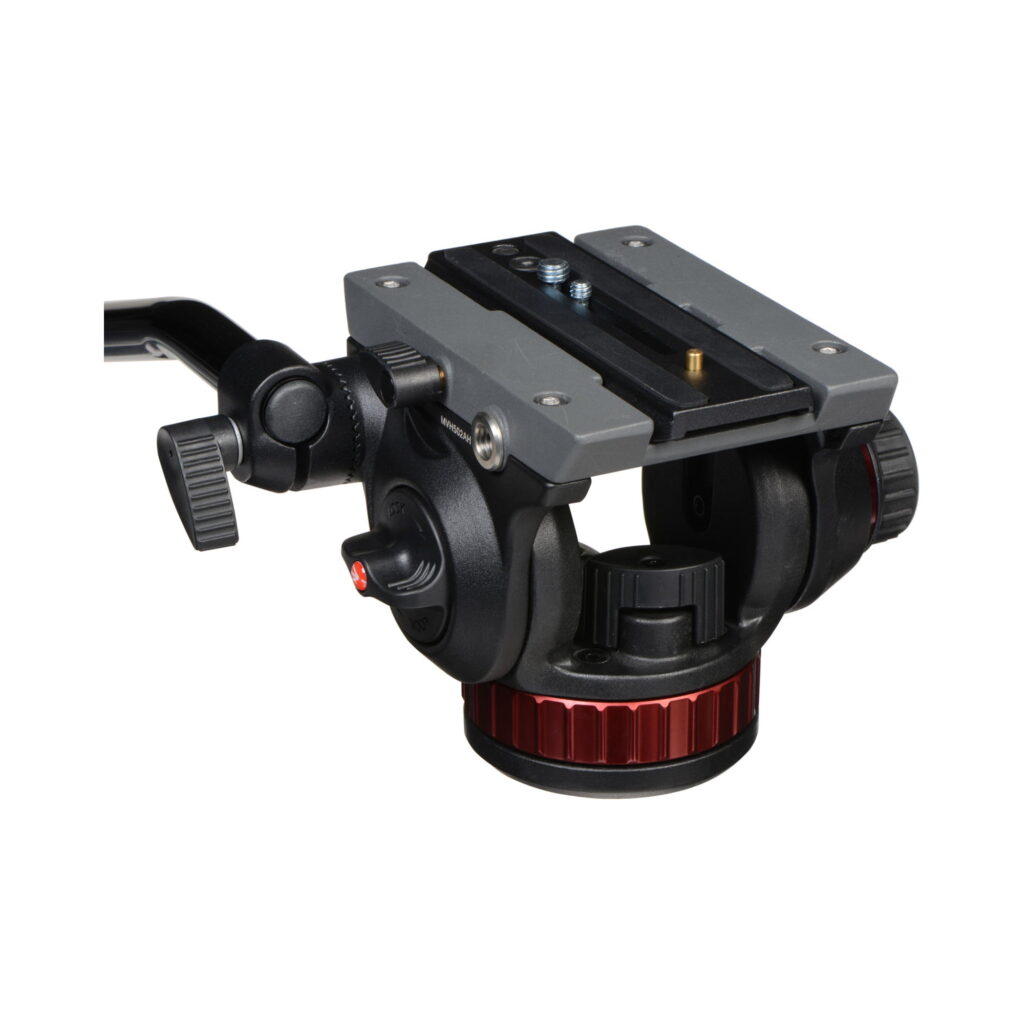

Manfrotto MVH502AH video head

Manfrotto MVH502AH video head

The Manfrotto MVH502AH is a fluid-damped tripod head designed for professional video production. It is designed to support a load of up to 7 kg and provides smooth panning and tilt movements for camera set-ups.

Balancing and quick camera attachment

The 4 kg counterweight system helps to control the camera’s balance during tilt movements. The Manfrotto 504PLONG quick-release plate makes it easier to adjust the centre of gravity and speeds up the process of mounting the camera so it is ready for use.

Mounts for photography equipment

The handle can be fitted to either side of the video head. In addition, the body features 3/8" accessory threads for attaching items such as a microphone or monitor.

Main features

• Fluid-damped design for controlled panning and tilting movements
• Maximum load capacity of 7 kg for the camera and accessories
• A 4 kg counterweight system supports balanced vertical rotation
• The 504PLONG quick-release plate makes it easy to adjust the centre of gravity and ensures quick operation
• The handle can be fitted on the right or left-hand side
• 3/8" accessory threads, for example for a microphone or monitor

Technical specifications

• Vertical rotation: -80° / +90°
• Panorama: 360°
• Height: 13 cm
• Weight: 1.691 kg
• Maximum load: 7 kg
• Counterweight: up to 4 kg
• Tripod mount: 3/8"
• Quick-release plate fittings: 1/4" and 3/8"
• Accessory mounting points: two 3/8" threads
• Operating temperature: -20 – +60 °C
• SKU: MVH502AH
