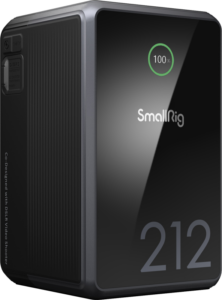

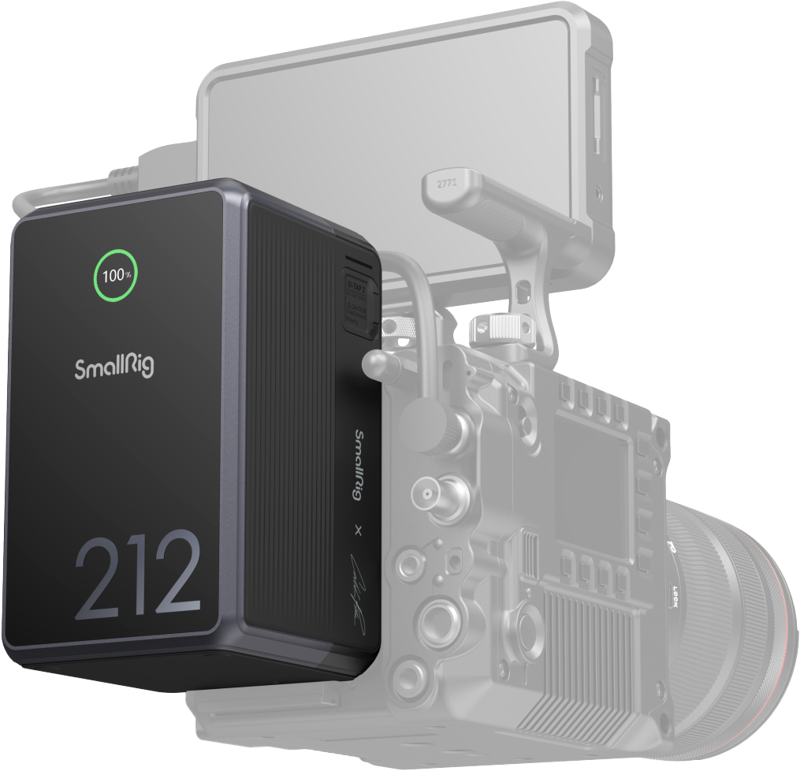

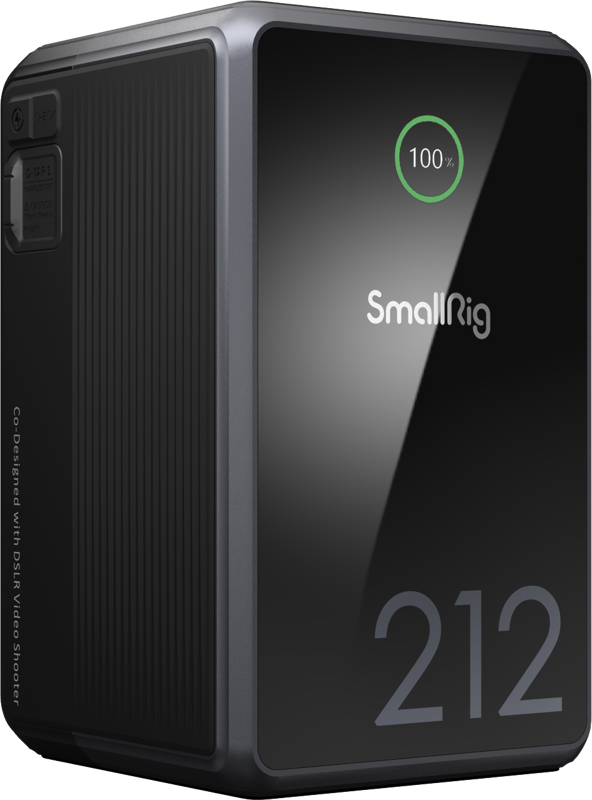

SmallRig 4293 V-Mount Battery VB212 Mini x Caleb Pike

SmallRig 4293 V-Mount Battery VB212 Mini x Caleb Pike

The SmallRig 4293 V-Mount Battery VB212 Mini x Caleb Pike is a major technological achievement that combines innovative design with cutting-edge technology. A unique feature of this battery is its highly integrated design, which reduces the size of the battery and makes it lighter and more portable. The battery combines fast charge protocol chips, MCU, voltage regulation and BMS chips. This enables support for a wide range of fast charging protocols (PD 3.1 / QC 3.0 / AFC etc.), bidirectional PD fast charging and discharging 140W (Max) and adaptive voltage/current regulation. Its customized intelligent BMS system ensures faster and safer charging by providing over-current, short-circuit, over-temperature and over-voltage protection, among others.

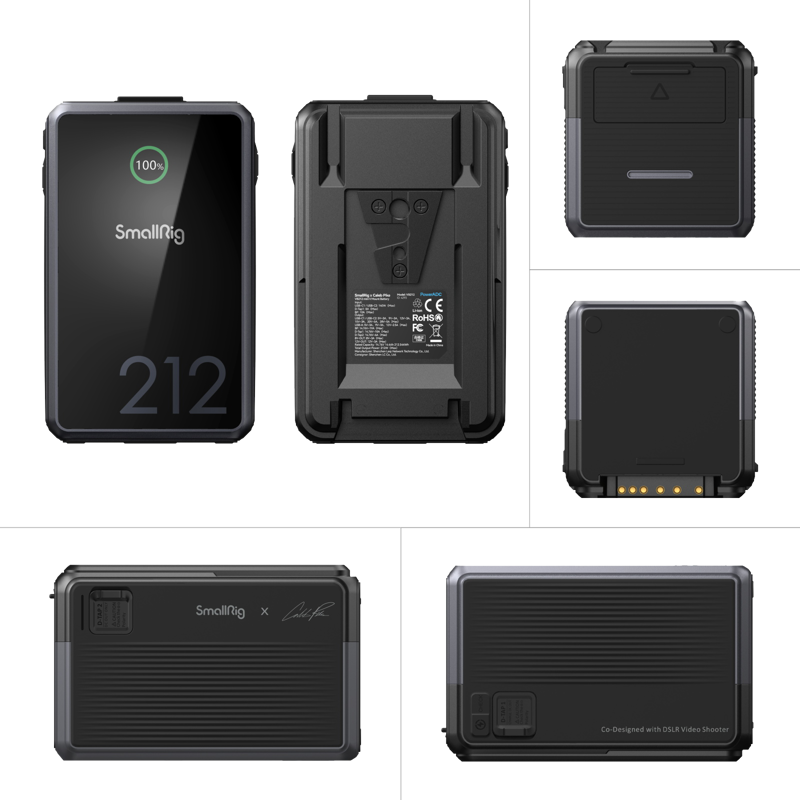

The battery body is equipped with D-Tap, USB-C, USB-A, DC 8V-OUT, DC12V-OUT and BP connectors that can charge or power multiple devices without the need for V-mount plates. This battery BMS chip has a built-in 16-bit Smart ADC, which together with the MCU and TFT display allows you to monitor battery status anytime, anywhere. The built-in premium battery cells (no inflated capacity) can be charged and discharged cyclically for excellent performance and stability. The design complies with internationally recognized standards such as MSDS/UN38.3/IEC62133/UL2054/UL62368, making it safer to use.

The aluminium alloy body with silicone coating provides durability and makes it drop-resistant. TPU and PC V0 materials make the battery heat and fire resistant. The scratch-resistant PC and acrylic cover add durability and protect the TFT display, which shows battery status clearly and accurately. The precisely shaped cover and well-placed grooves allow quick and easy interaction with the dust cover. Overall, the SmallRig 4293 V-Mount Battery VB212 Mini x Caleb Pike is safe and powerful enough to capture every moment without worry.

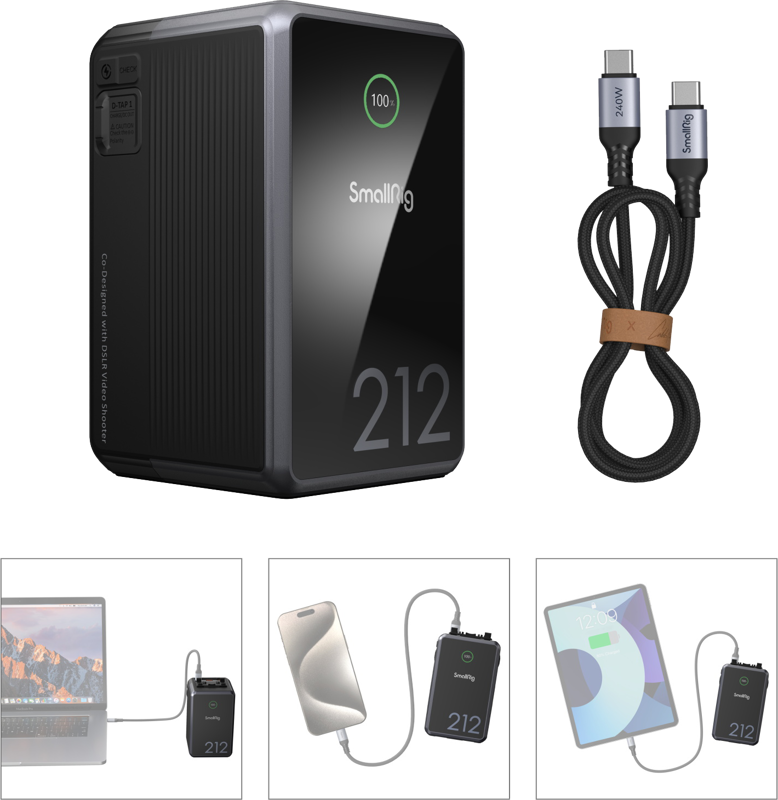

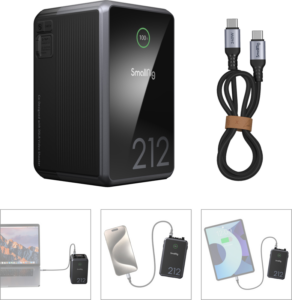

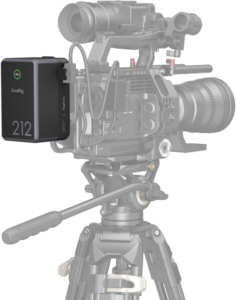

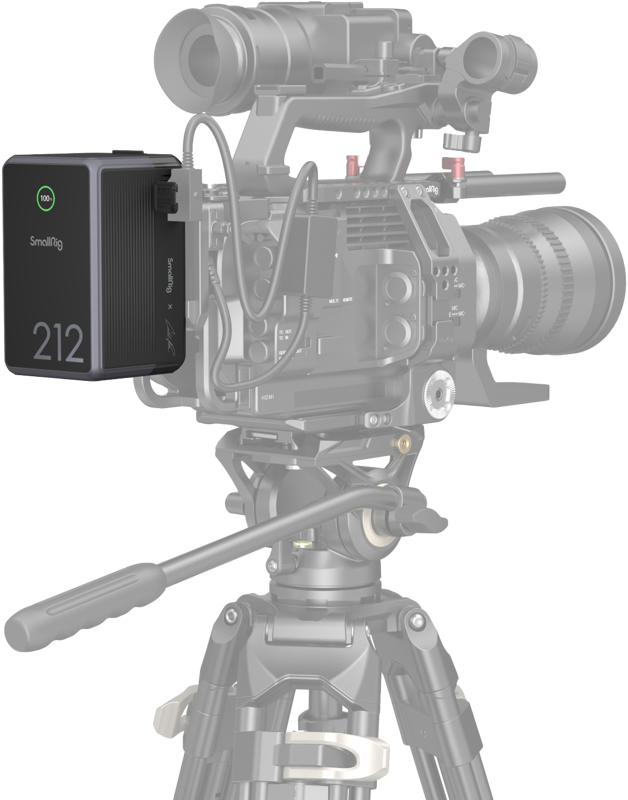

Compatibility: Mirrorless camera, video camera, camera, screen, tracking focus, image transmitter, LED video light, mobile phone, tablet, laptop, etc.

Certification: FCC, CE, RoHS, ISED, PSE, RCM.

Technical specifications:

• Battery rating: lithium-ion
• Capacity 212Wh
• Battery type: V-Mount
• Connections: USB-C, USB, D-Tap
• Number of USB ports: 3
• Weight (g): 1609
• Voltage (V): 14,8v
