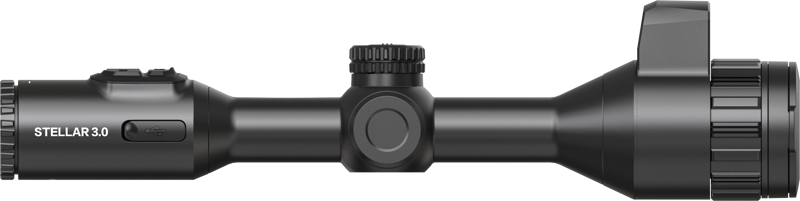

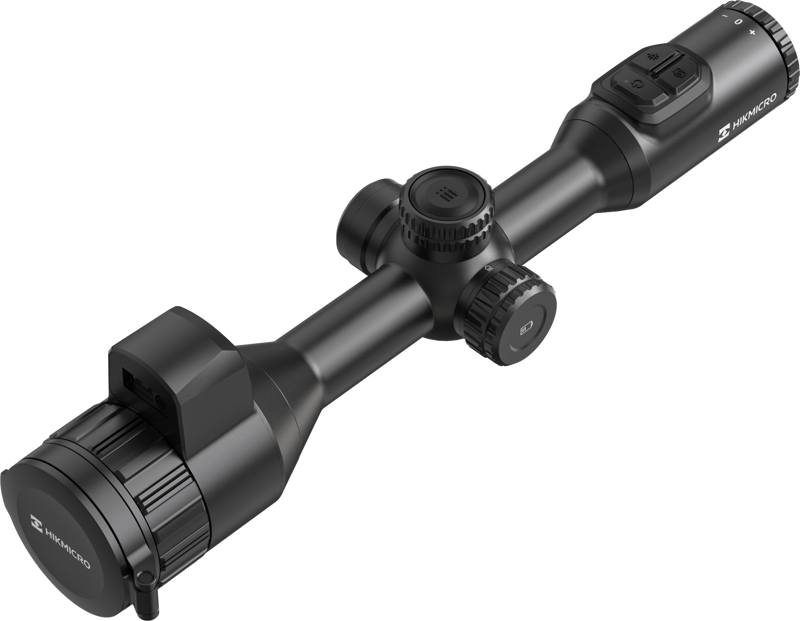

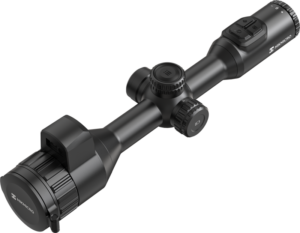

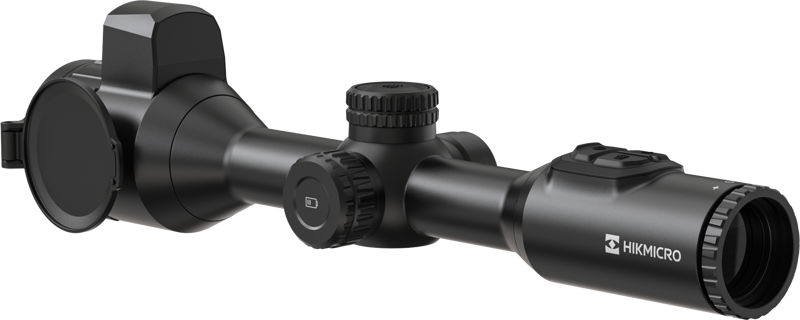

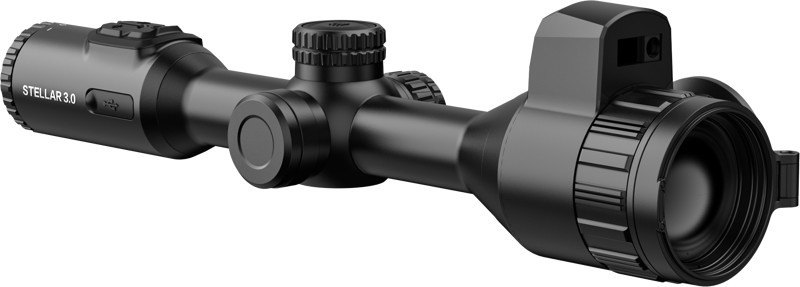

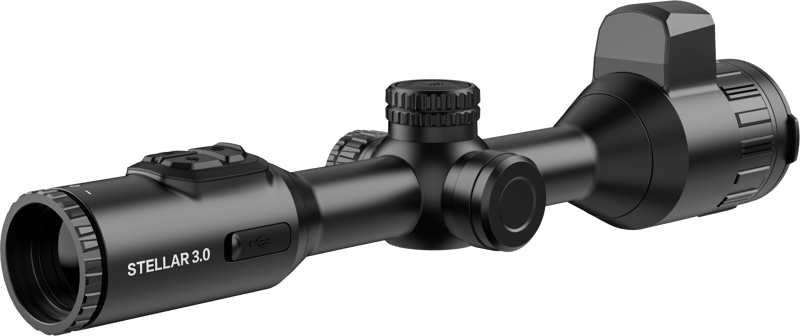

Stellar SH50L 3.0 Thermal TubeScope thermal riflescope

Stellar SH50L 3.0 Thermal TubeScope thermal riflescope

HIKMICRO Stellar SH50L 3.0 is a thermal imaging scope for hunting and demanding outdoor use. It helps to detect targets in conditions where visible light, fog, smoke, dust, rain, snow or vegetation make observation difficult. The traditional 30 mm tube design suits users who want a classic shape combined with modern thermal imaging technology.

Sharp thermal image without interruptions

384 × 288 @ 12 µm thermal detector and NETD < 15 mK sensitivity make temperature differences visible even in challenging conditions. Image Pro 2.0 image processing and HIKMICRO Shutterless Image System (HSIS) support a detailed image without interruptions caused by the shutter.

Long-range observation and distance measurement

The 50 mm F1.0 lens enables a detection range of up to 2,600 metres. The built-in laser rangefinder measures distances up to 1,000 metres, and ballistic calculation supports precise use in field conditions.

Built for long journeys

It features internal video recording, 64 GB of internal storage, hot-tracking and five zeroing profiles. The internal rechargeable batteries and external battery allow for up to 9 hours of continuous operation, while IP67 protection and a 1000 g / 0.4 ms shock resistance support use in variable weather conditions.

Main features

• Detects thermal targets in darkness, fog, smoke, dust, rain and snow
• Image Pro 2.0 and HSIS help to maintain a detailed image without shutter interruptions
• 50 mm F1.0 lens supports long-range observation up to 2,600 metres
• Built-in laser rangefinder and ballistic calculation make distance estimation easier
• 6.0×–24.0× magnification range, hot-spot tracking and five zeroing profiles for versatile use
• Internal video recording and 64 GB of storage for capturing observations
• Up to 9 hours of battery life with internal rechargeable batteries and an external battery
• IP67 protection and high impact resistance for demanding conditions

Technical specifications

• Thermal detector: 384 × 288 px, 12 µm
• Thermal sensitivity: NETD < 15 mK
• Lens: 50 mm, F1.0, germanium
• Observation range: 2600 m
• Magnification: 6.0×–24.0×
• Display: 1.03-inch OLED, 2560 × 2560 px
• Field of view: 5.3° × 4.0°
• Field of view at 100 m: 9.3 m × 7.0 m
• Laser rangefinder: yes, up to 1000 m
• Diopter adjustment: -5D – +3D
• Storage: 64 GB internal
• Battery type: rechargeable 18650, lithium
• Battery life: up to 9 h
• Protection class: IP67
• Shock resistance: up to 1000 g / 0.4 ms
• Operating temperature: -30 °C to +55 °C
• Dimensions: 418.5 × 84 × 92.4 mm
• Weight: 880 g
• Product number: 128952
• Manufacturer's part number: 308101375
• EAN: 6974004646820
