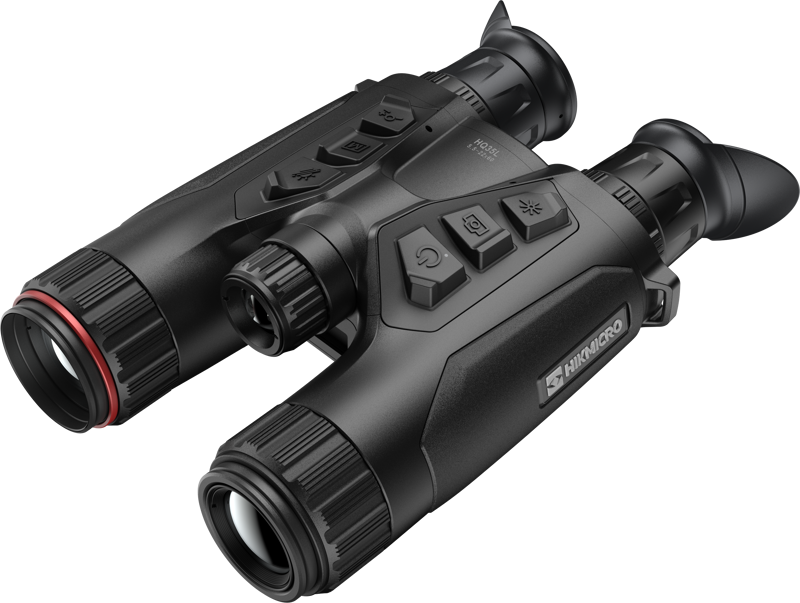

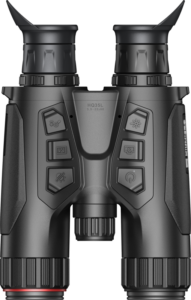

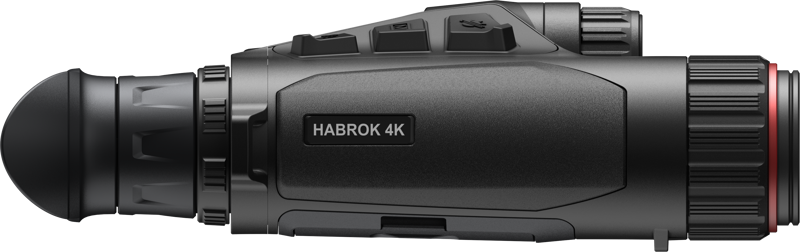

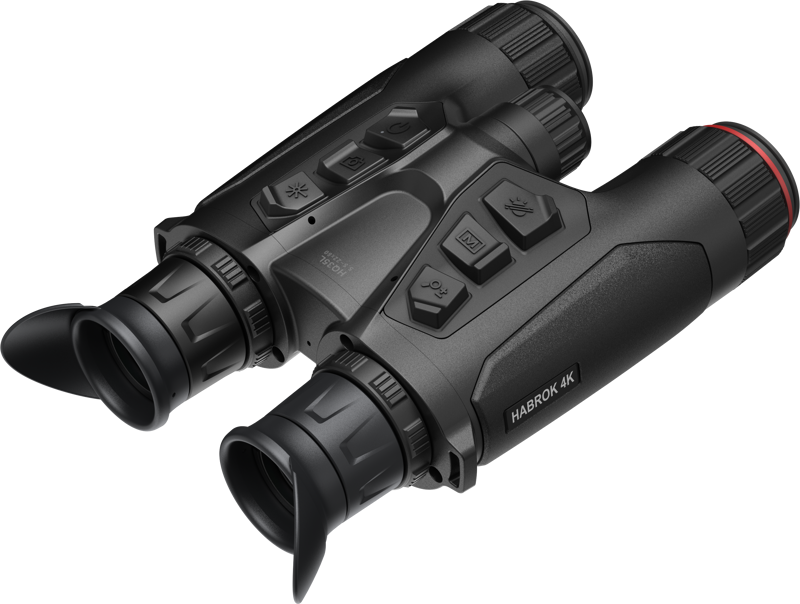

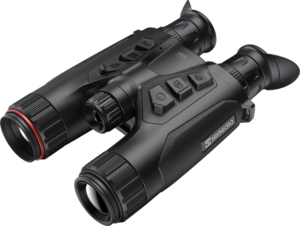

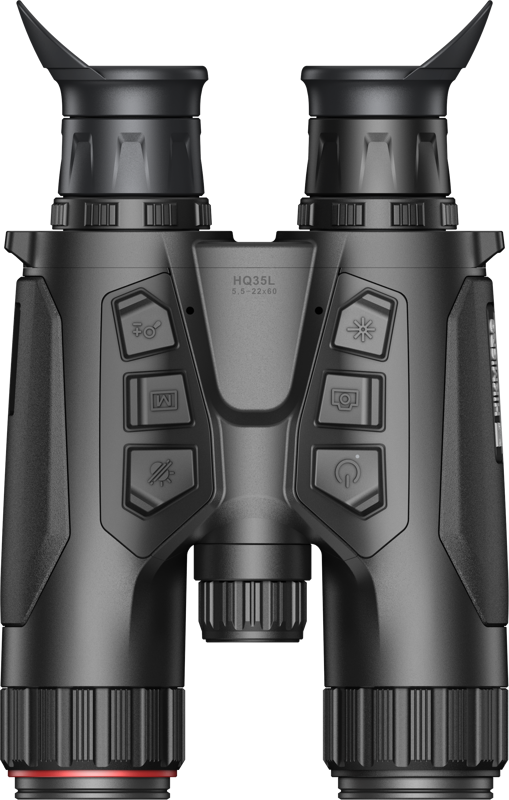

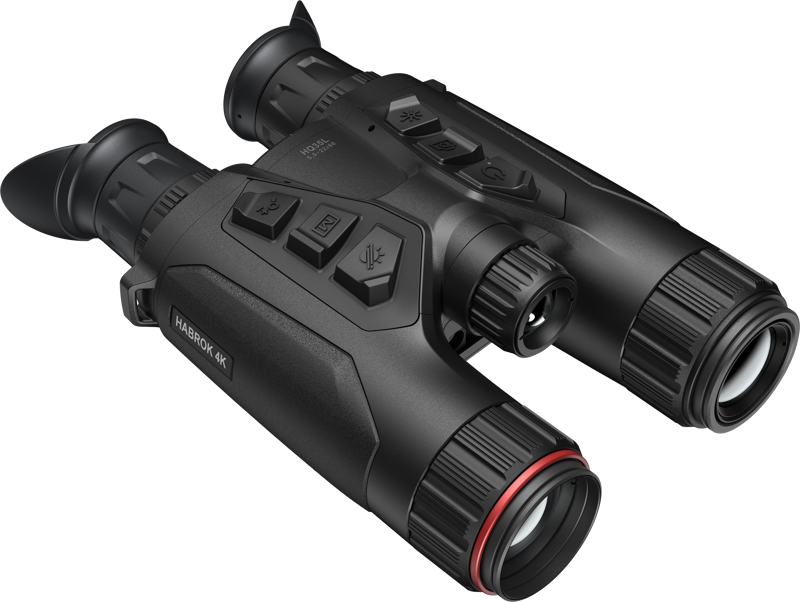

Hikmicro Habrok 4K HQ35L thermal binocular

Hikmicro Habrok 4K HQ35L thermal binocular

The HIKMICRO Habrok 4K HQ35L combines thermal imaging, 4K digital viewing and laser rangefinding in a single binocular body. It is suitable for demanding outdoor use, where targets must be detected, observed and distances estimated even in challenging lighting conditions.

Detection of thermal signatures from a long distance

A 640 × 512 thermal detector and a sensitivity of under 20 mK help to distinguish heat signatures clearly. The 35 mm F1.0 thermal lens enables detection from a distance of up to 1,800 metres.

4K image and built-in rangefinder

A 3840 × 2160 resolution CMOS sensor and 60 mm optics deliver detailed digital imaging. The integrated laser rangefinder measures distances up to 1000 metres.

Designed for field use

The IP67-rated housing withstands demanding outdoor conditions, and the weight is 798 g. The button layout is designed for use even while wearing gloves, and the foldable eyecups make it easier to use also with glasses.

Main features

• Combines thermal imaging and 4K digital viewing into one binoculars
• Detects thermal signatures from a distance of up to 1,800 metres
• The laser rangefinder supports distance estimation up to 1,000 metres
• 1920 × 1080 OLED display offers a clear viewing image
• 850 nm and 940 nm IR options for different use cases
• Over 8 hours operating time with replaceable 18650 batteries
• Support for an external power supply extends field use
• Twist-up 3-position eyecups make use easier when wearing glasses

Technical specifications

• Product code: 133156
• Manufacturer part number: 308101272
• EAN: 6974004647223
• Thermal detector: 640 × 512 @ 12 μm
• Thermal module sensitivity: NETD < 20 mK (@25°C, F# = 1.0)
• Thermal lens: 35 mm, F1.0
• Thermal imaging detection range: up to 1,800 m
• Thermal imaging magnification: 3.0×–22.0×
• Digital sensor: 3840 × 2160 CMOS
• Digital optics focal length: 60 mm
• Digital image magnification: 5.5×–22.0×
• Display: 0.49-inch OLED
• Screen resolution: 1920 × 1080
• Laser rangefinder: up to 1000 m
• IR options: 850 nm and 940 nm
• Operating time: over 8 h
• Battery: replaceable and rechargeable Li-ion 18650
• Power supply: compatible with an external power supply
• Weight: 798 g
• Protection class: IP67
• Twist-up eyecups, 3-position
