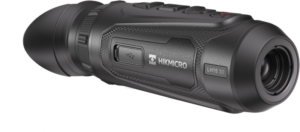

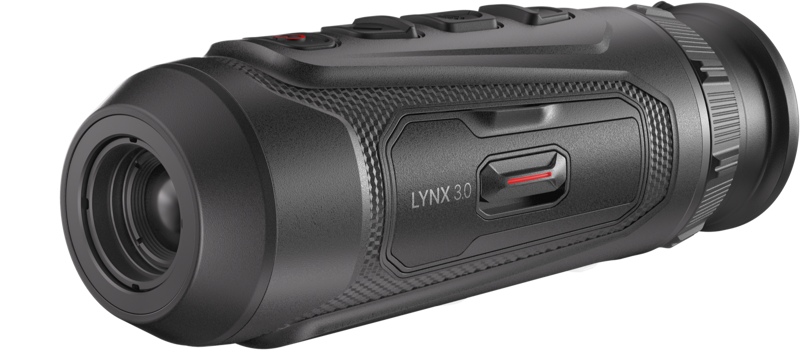

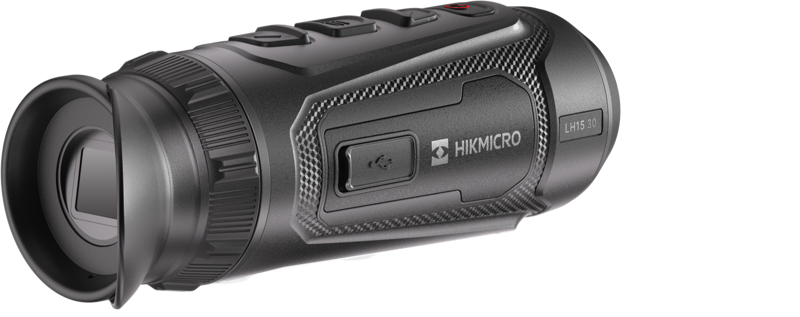

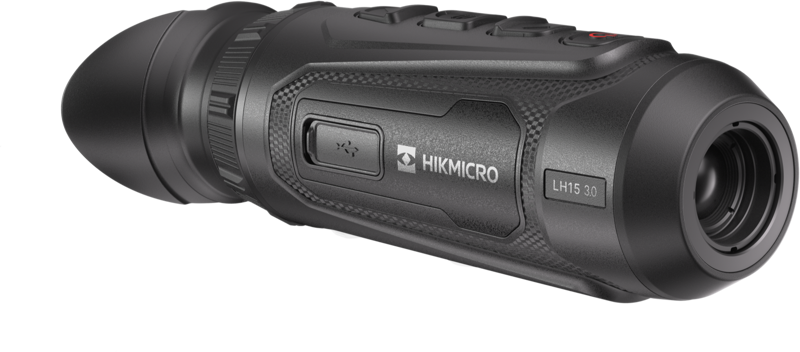

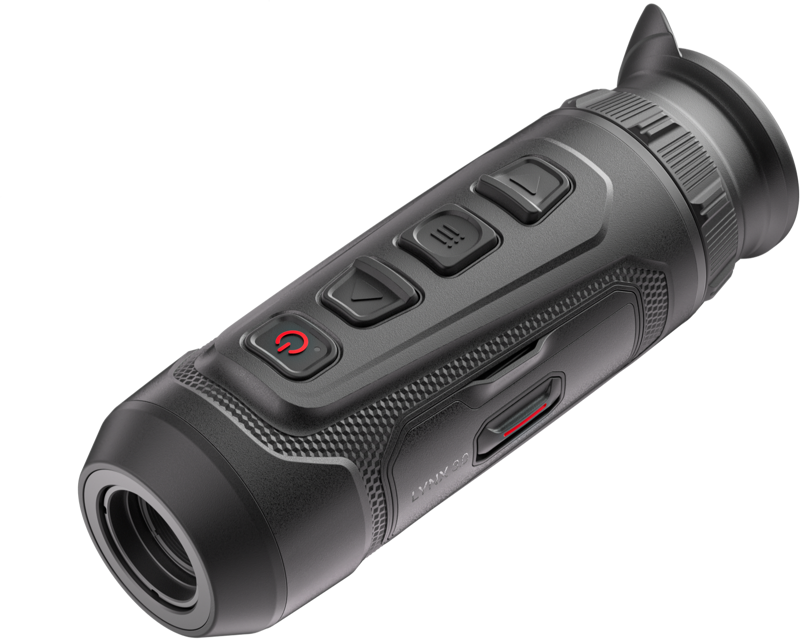

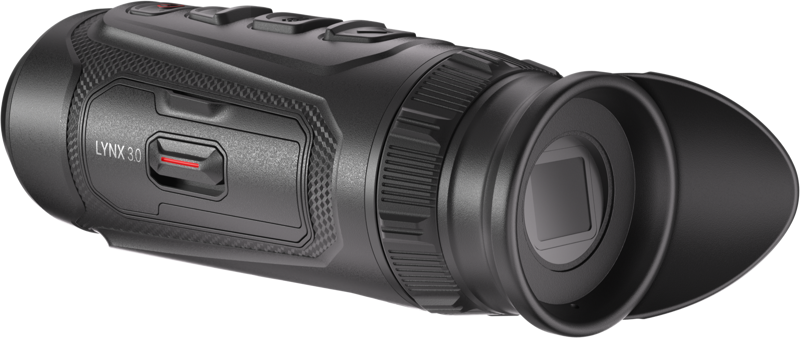

Hikmicro Lynx LH15 3.0 Thermal Monocular – thermal imaging camera

HIKMICRO Lynx LH15 3.0 Thermal Monocular

The device is a thermal imaging monocular for surveillance, nature observation, boating, hunting and birdwatching. It combines a 320 × 240 VOx detector, a long detection range and internal storage in an easily portable body.

Thermal detection for outdoor use

The 320 × 240 VOx detector, 12 µm pixel pitch and 50 Hz frame rate support thermal target tracking in varied situations. The detection range is up to 750 metres, and the 2.2×–17.6× magnification range helps to transition from an overall view to a more detailed inspection of the target.

Storage and streaming in the field

Internal 64 GB of storage provides space for device files without the need for a separate memory card. The replaceable 18650 Li-ion battery provides an operating time of 5.5 hours at 25 °C and 5 hours at −20 °C.

Protected structure for varying conditions

With IP67 protection, an operating temperature range of −30…+45 °C and a weight of 296.5 grams, the device is suitable for outdoor use in a variety of weather and temperature conditions. The 0.39-inch AMOLED display offers a resolution of 1024 × 768 for viewing.

Main features

• Thermal imaging helps to detect objects even in the dark without visible light
• A 750-metre detection range supports scanning large areas
• 2.2–17.6x magnification covers both the general view and more detailed inspection of the subject
• Internal 64 GB storage for device files
• Replaceable 18650 Li-ion battery makes longer use in the field easier
• IP67 protection and wide operating temperature range for outdoor use
• Suitable for surveillance, wildlife observation, boating, hunting and birdwatching

Technical specifications

• Detector: 320 × 240 VOx, 12 µm pixel pitch, 50 Hz
• Thermal sensitivity (NETD): 18 mK
• Lens: 15 mm, F1.0
• Detection range: 750 m
• Magnification: 2.2×–17.6×
• Field of view: 11.7° × 8.8°
• Field of view at 100 m: 20.5 × 15.4 m
• Display: 0.39-inch AMOLED, 1024 × 768
• Eye relief: 20 mm
• Dioptre adjustment: −5D to +3D
• Eyecup: flip-up, 3-position
• Internal storage: 64 GB
• Battery type: replaceable 18650 Li-ion
• Battery life: 5.5 h (@25 °C) / 5 h (@−20 °C)
• Dimensions: 156.3 × 53.6 × 49.5 mm
• Weight: 296.5 g with battery
• Protection: IP67
• Operating temperature: −30 °C to +45 °C
• Intended use: surveillance, nature observation, boating, hunting, birdwatching
