Hikmicro Lynx LH19 3.0 Thermal Monocular thermal imaging camera

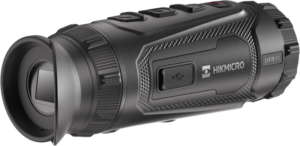

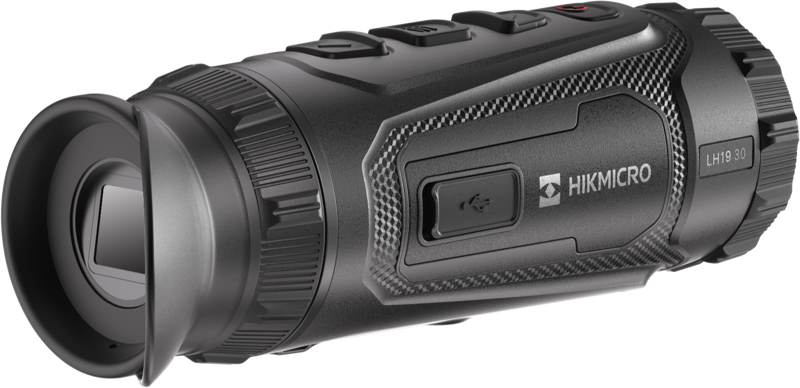

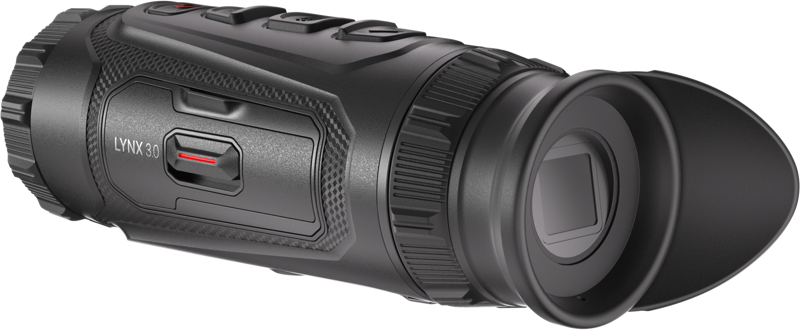

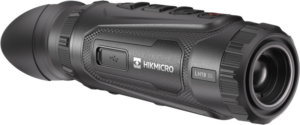

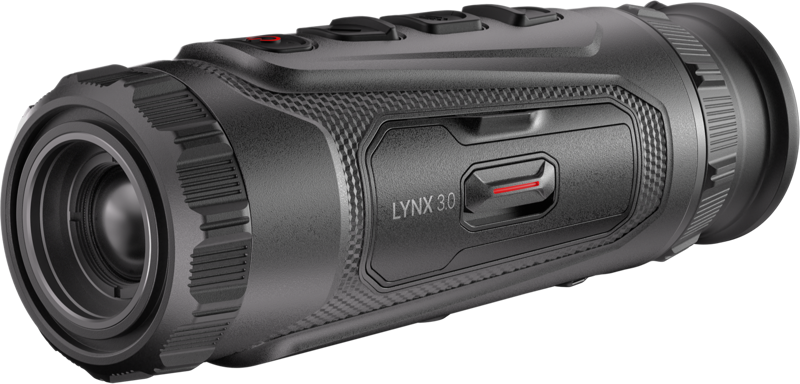

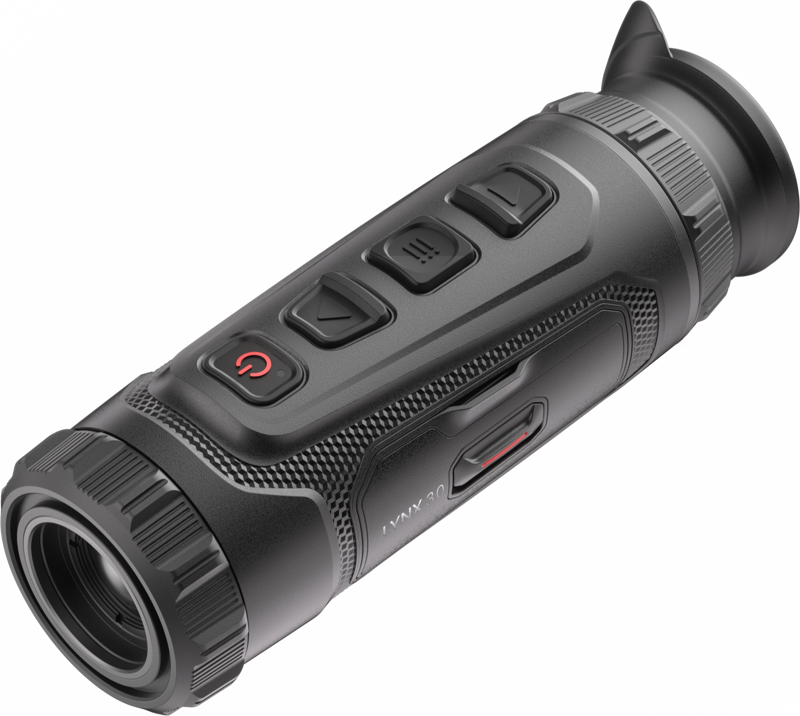

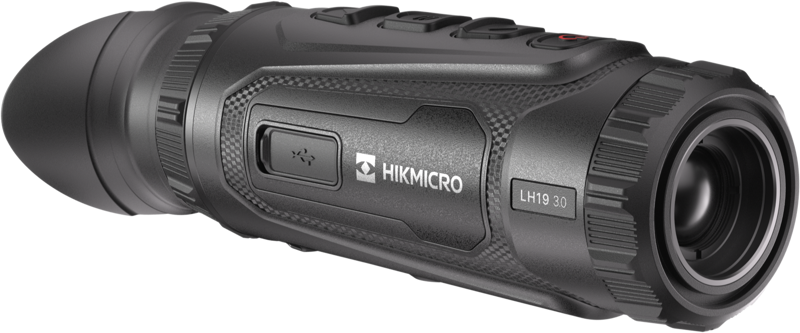

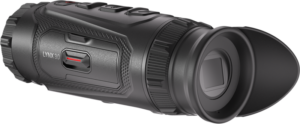

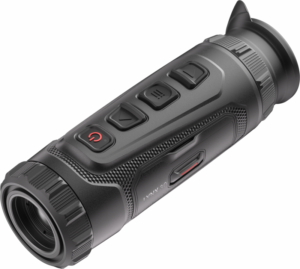

HIKMICRO Lynx LH19 3.0 Thermal Monocular

The HIKMICRO Lynx LH19 3.0 is a pocket-sized thermal imaging monocular for hunting, wildlife observation, surveillance, boating and birdwatching. It combines a 384×288 resolution thermal sensor, a 19 mm f/1.0 germanium objective lens and a detection range of up to 900 metres for field use.

Precise thermal image and smooth tracking

The VOx uncooled thermal core produces a 50 Hz thermal image, and a thermal sensitivity of less than 15 mK NETD helps to distinguish even the smallest temperature differences. The HIKMICRO Shutterless Imaging System reduces viewing interruptions caused by calibration, while Image Pro 3.0 and Zoom Pro help preserve details when magnification is used.

Versatile viewing for various conditions

The 1.9x base magnification can be extended up to 15.2x with digital zoom. There are six thermal imaging palettes to choose from: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome and Green Monochrome.

Structure designed for the field

A weight of 331 grams, IP67 rating and -30 to +45 °C operating temperature make the device suitable for varied outdoor conditions. Internal 64 GB storage, a tripod adapter and dioptre adjustment increase usability during longer observation sessions.

Main features

• Detect thermal targets from up to 900 metres away through the 19 mm f/1.0 germanium lens
• The 15 mK NETD helps to distinguish small temperature differences in target identification
• The 50 Hz frame rate supports smooth tracking of moving objects
• The 8x digital zoom increases the magnification to 15.2x
• Six viewing palettes for different backgrounds and observation situations
• The HSIS system reduces viewing interruptions caused by shutter calibration
• IP67 protection and wide operating temperature range for outdoor use
• The tripod adaptor enables use with a tripod

Technical specifications

• Product number: 134886
• Manufacturer’s product number: 308101541
• EAN: 6974004648701
• Sensor type: VOx uncooled thermal sensor
• Sensor resolution: 384×288
• Pixel pitch: 12 µm
• Wavelength range: 8–14 µm
• Refresh rate: 50 Hz
• Thermal sensitivity NETD: less than 15 mK (@25 °C, F#=1.0)
• Lens: 19 mm f/1.0 germanium
• Magnification: 1.9×–15.2×
• Digital zoom: 8×
• Detection range: 900 m
• Closest focusing distance: 3 m
• Field of view: 13.8° × 8.4°
• Field of view at 100 m: 24.2 m × 14.7 m
• Display: 0.49-inch AMOLED, 1920×1080
• Dioptre adjustment: -5 D – +3 D
• Exit pupil: 6 mm
• Eye relief: 20 mm
• Eyecup: flip-up, 3-position
• Memory: internal 64 GB
• Battery type: Lithium
• Dimensions (W×D×H): 158.4 × 53.6 × 49.5 mm
• Weight: 331 g
• Protection class: IP67
• Operating temperature: -30 to +45 °C
