The Sony DVF-EL1 is a detachable and tiltable viewfinder from Sony FX5 - for a video camera. It is ideal for shooting situations that require precise framing and clear monitoring from both eye level and lower angles.

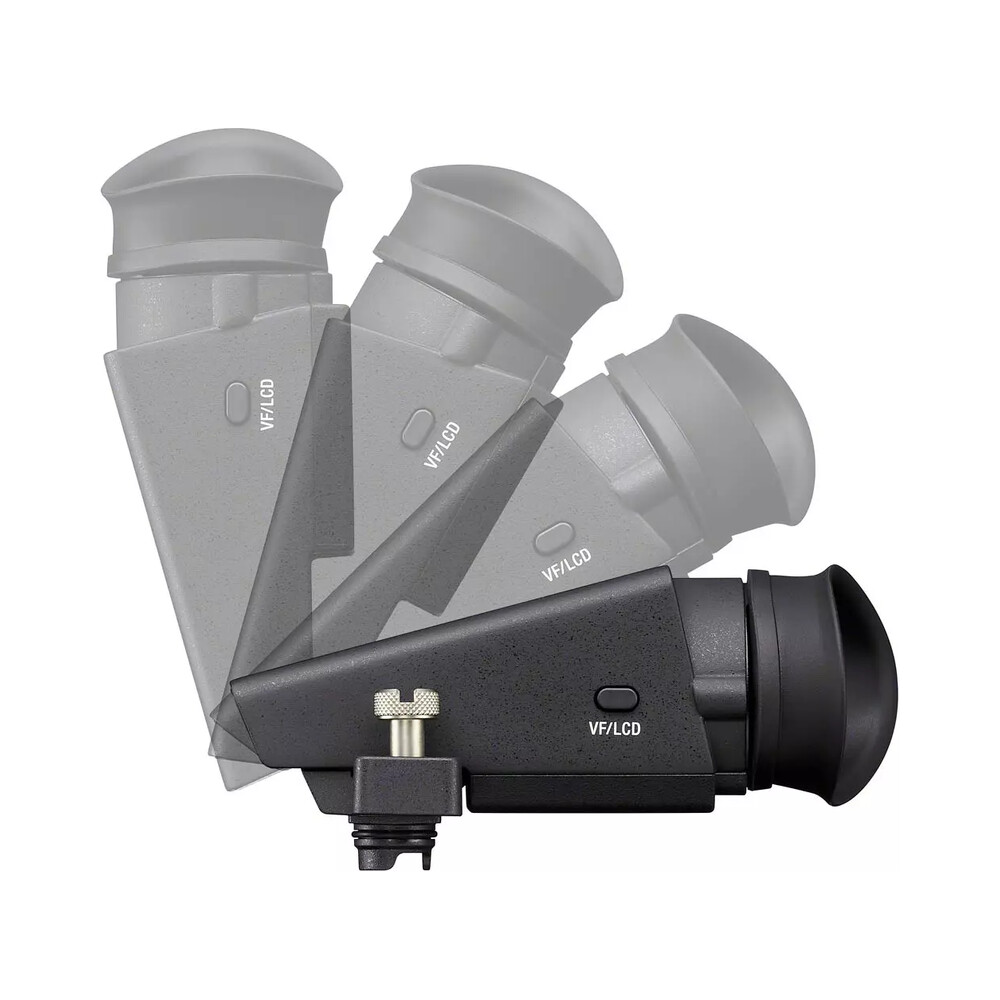

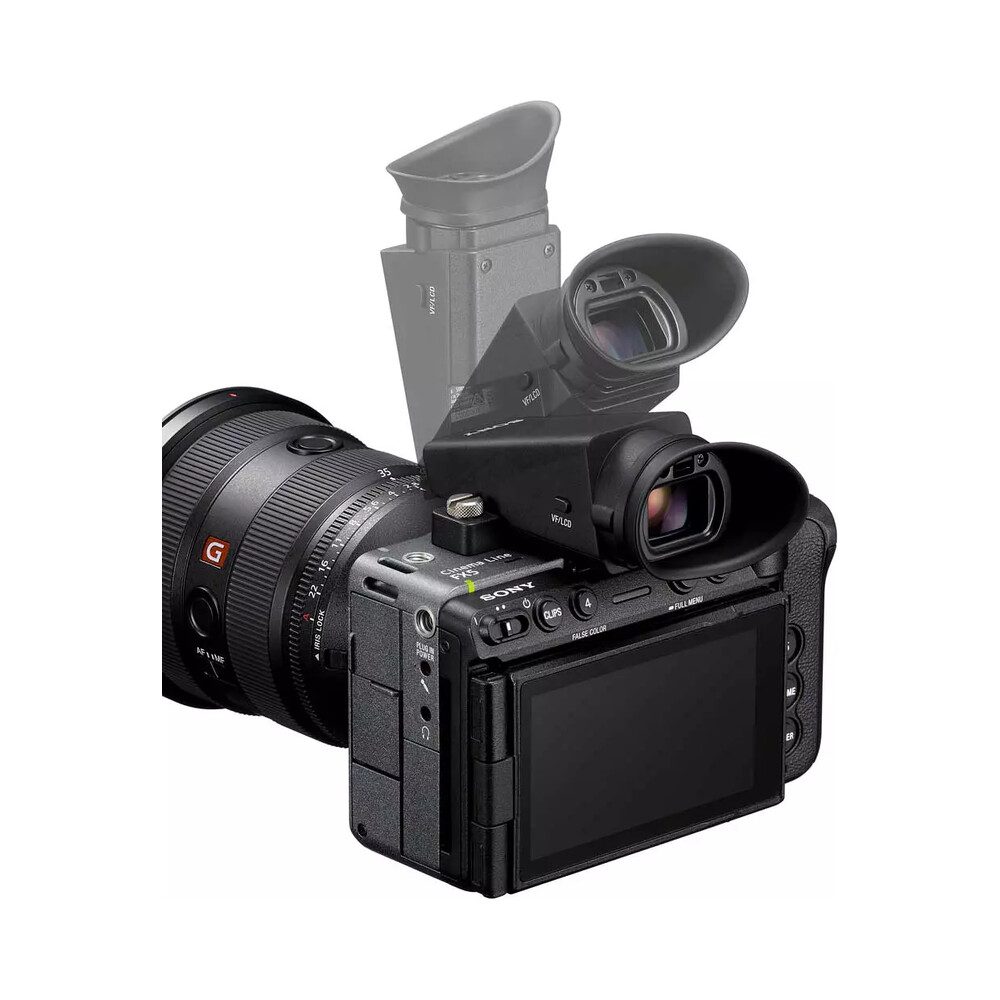

A tilting structure depending on the shooting situation

The viewfinder’s 0–90-degree tilt helps you adjust the viewing angle to suit your shooting position. Its detachable design makes it a versatile accessory for use with the FX5 camcorder.

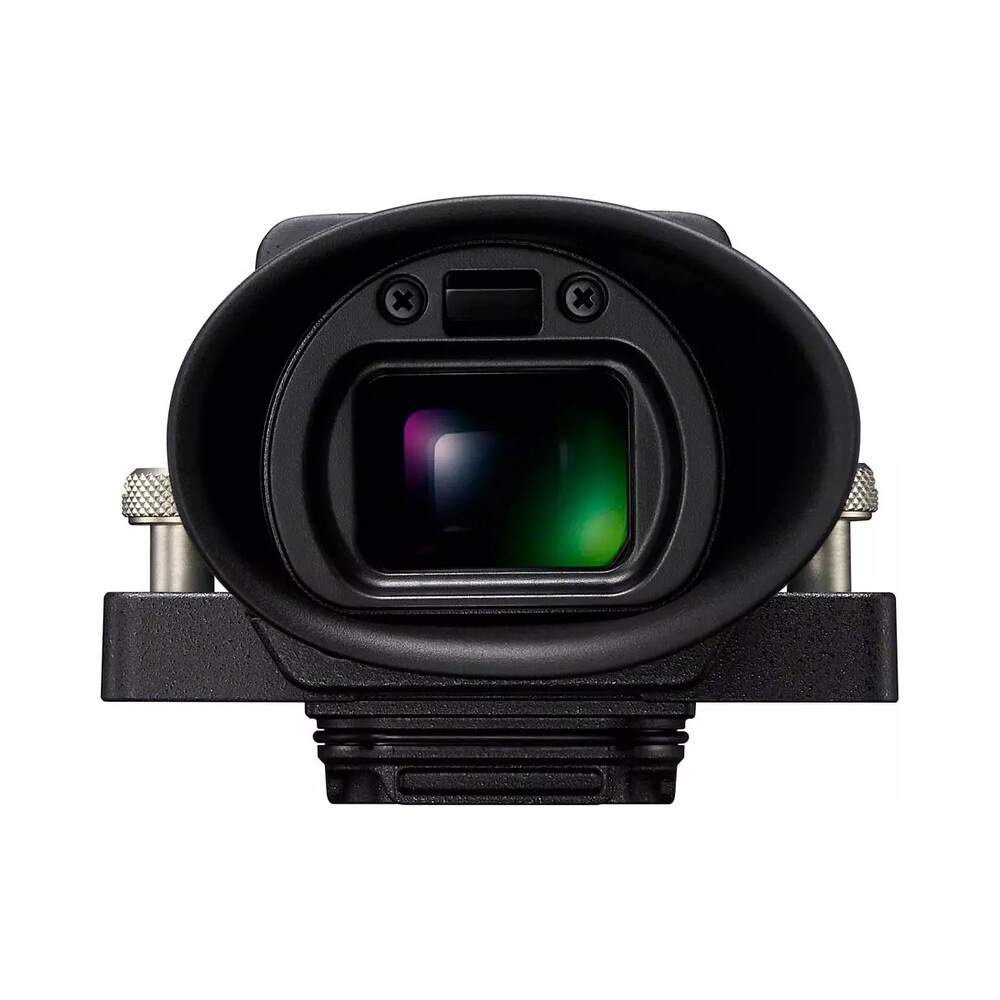

A bright OLED display, even outdoors

The OLED display offers high contrast and low power consumption. A brightness of 2,500 cd/m² helps to keep the viewfinder image legible even in direct sunlight.

Main features

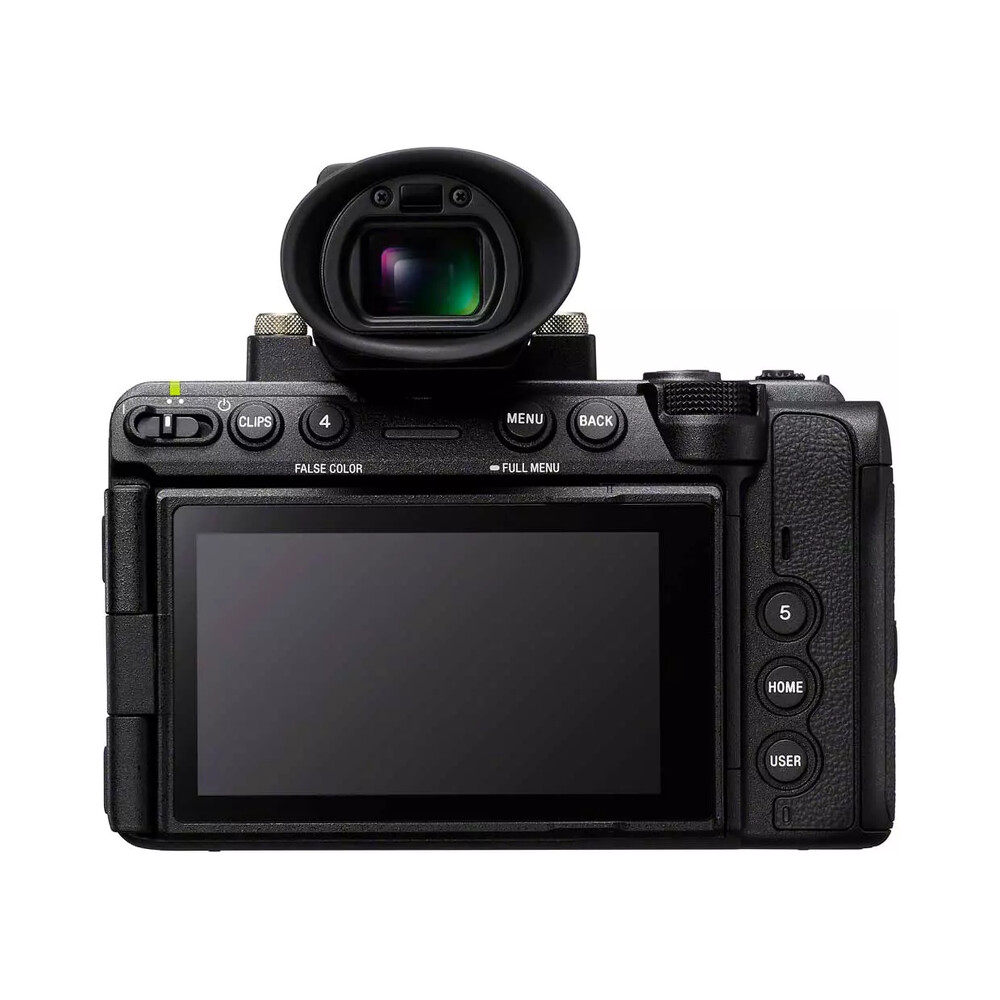

• Designed for the Sony FX5 video camera
• The detachable design allows the viewfinder to be used as required
• A tilt range of 0–90° allows you to shoot from both eye level and a low angle
• The 7.08 million-pixel OLED display shows a detailed viewfinder image
• 10-bit colour reproduction and a wide colour gamut support image evaluation
• A brightness of 2,500 cd/m² improves visibility in bright surroundings
• 1/4″-20 threads for securing the fastening

Technical specifications

• Type: OLED, colour
• Resolution: 7.08 million pixels
• Bit depth: 10-bit
• Brightness: 2,500 cd/m²
• Tilt: 0–90°
• Dioptre adjustment: -4.0 – +3.0
• Compatibility: Sony FX5
• Dimensions: 59.9 x 46.1 x 94.9 mm
• Weight: 96 g
