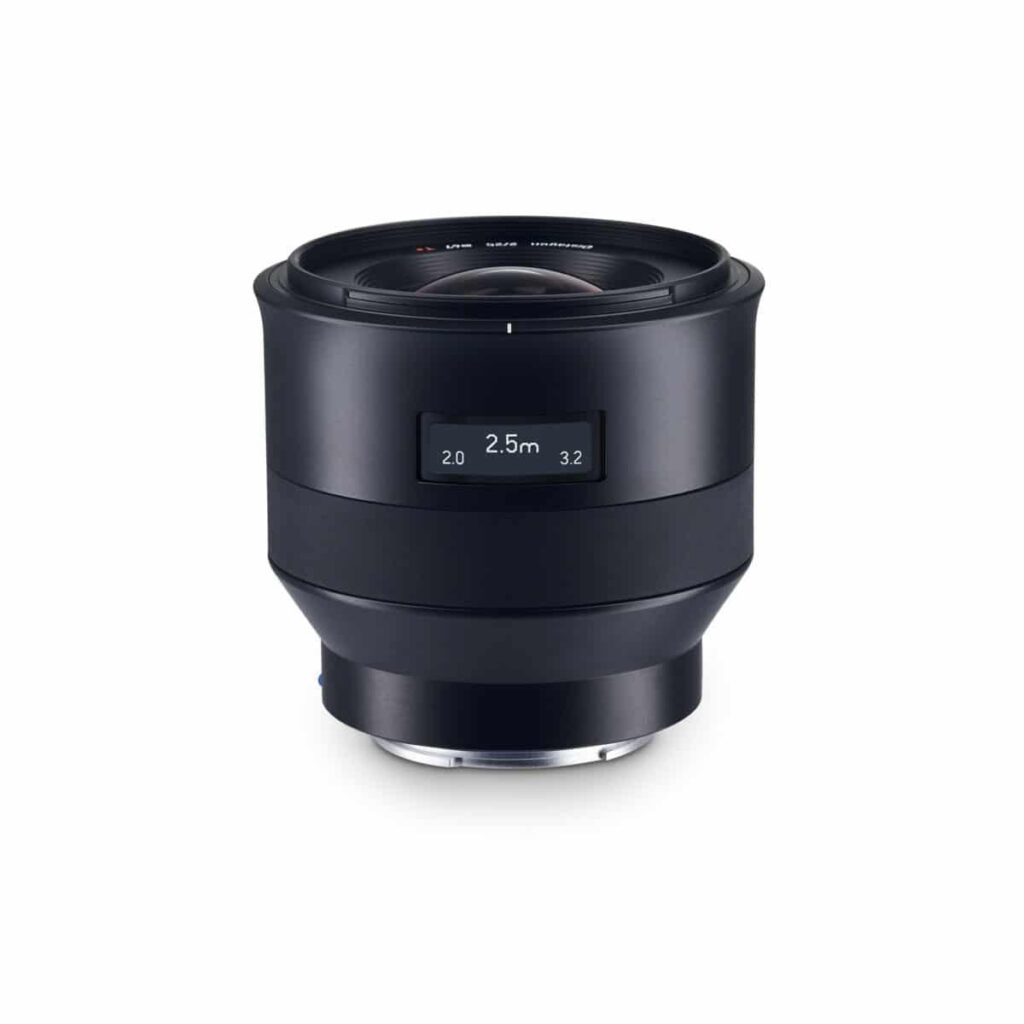

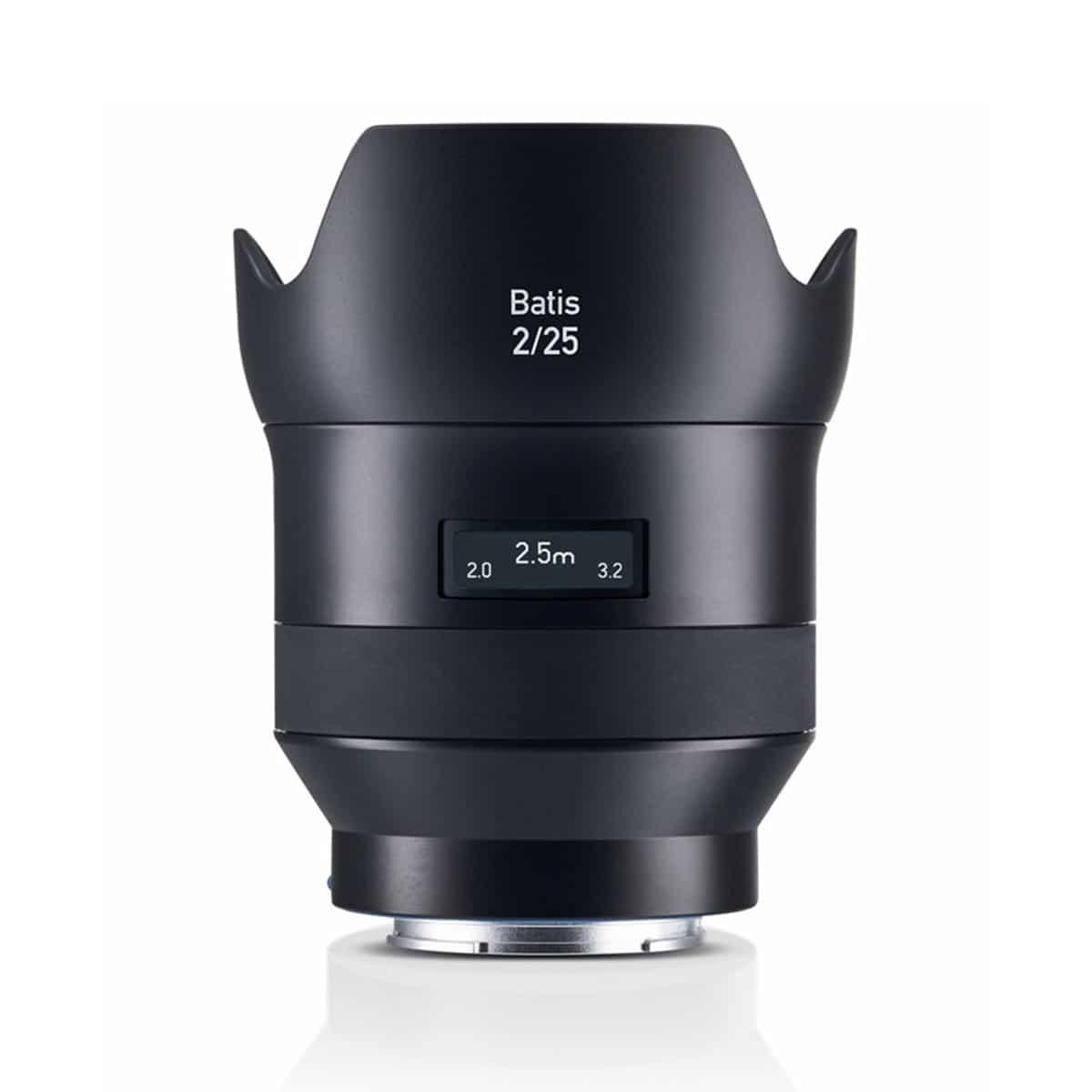

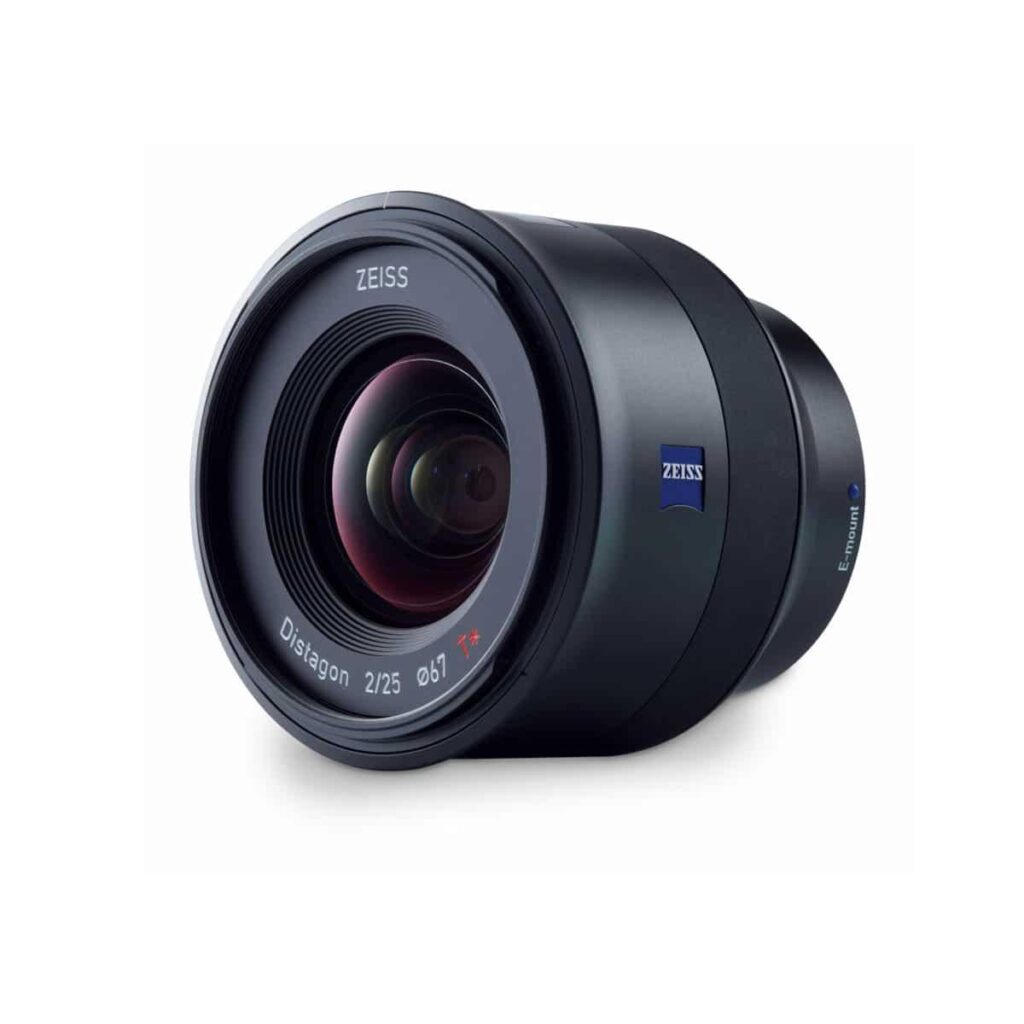

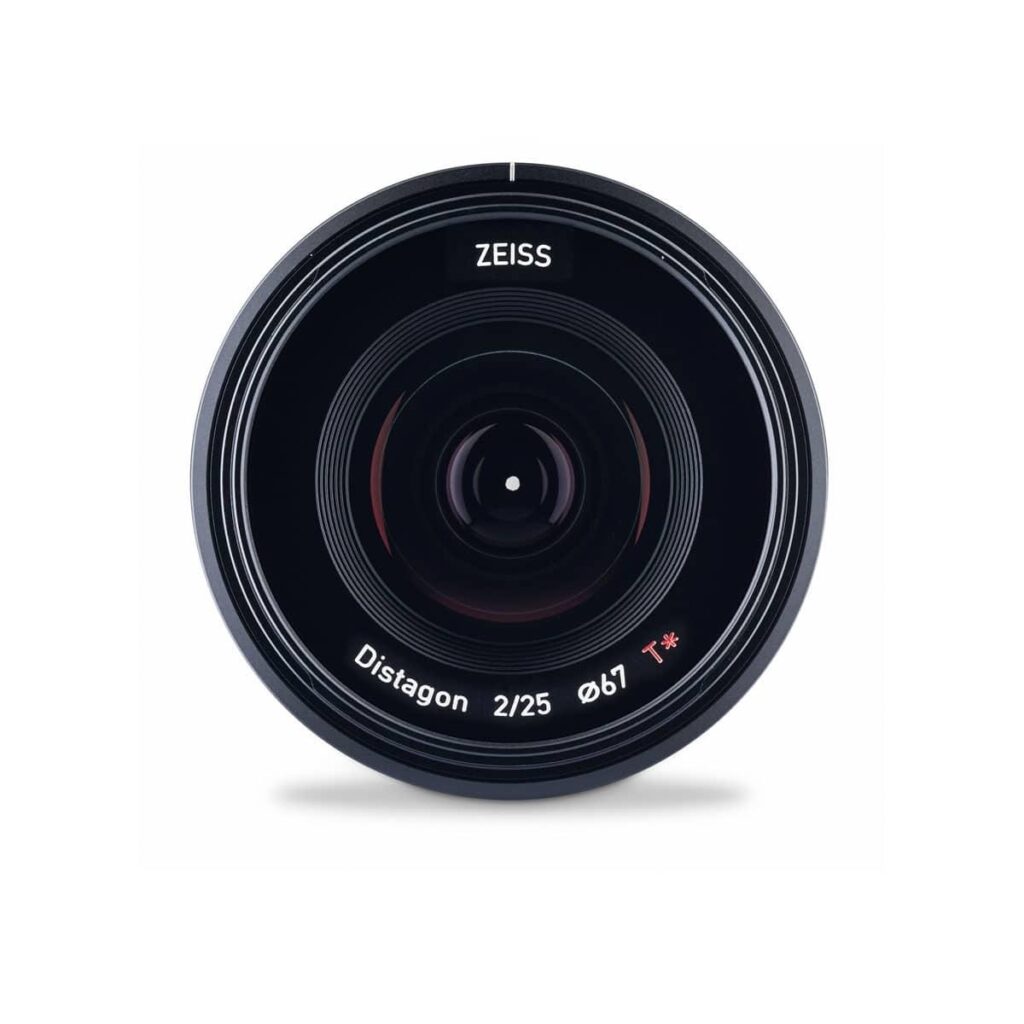

Zeiss Batis 25mm f/2

Distagon-type wide-angle lens with 10 lens elements in 8 groups. Four of the elements are aspherical lenses on both sides and five of the lens elements are made of special glass. The lens has an angle of view of 82 degrees and a closest focusing distance of only 0.2 metres. These features make the lens perfect for architectural and landscape photography. The large aperture allows for depth of field control, giving a new dimension to many subjects.

Structure

Despite the fast and highly accurate autofocus, the lens also features a high-quality manual focus, making it easy for the photographer to choose the focus mode that best suits the subject. The sleek modern design is familiar from the Otus range of lenses. An OLED display on the top of the lens shows the distance to the subject (from the focal plane) and the depth of field at the selected aperture. The lens is also weatherproof.

Technical specifications ZEISS Batis 2/25

• Burning distance: 25 mm
• Aperture range: f/2 - f/22
• Elements/group: 10/8
• Focusing range: 0.2 m - infinity
• Working distance: 0.13 m - infinitely variable
• Viewing angle (diag. / horiz. / vert.): 82°/ 72°/ 51°
• Drawing circle diameter: 43.3 mm
• Subject size at closest focus**: 12.4 x 18.7 cm
• Magnification ratio: 1/5.2
• Thread: M67 x 0.75
• Diameter (max.): 81 mm
• Focusing ring diameter:´78 mm
• Length (without guards): 78 mm
• Length (with guards): 92 mm
• Weight (without guards): 335
