Hikmicro Lynx LH25 3.0 Thermal Monocular thermal imaging camera

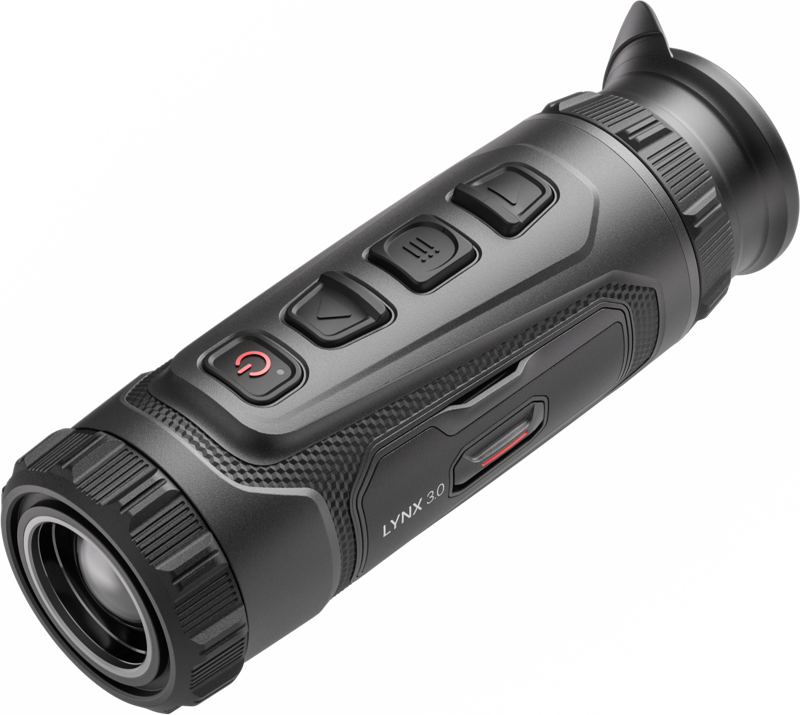

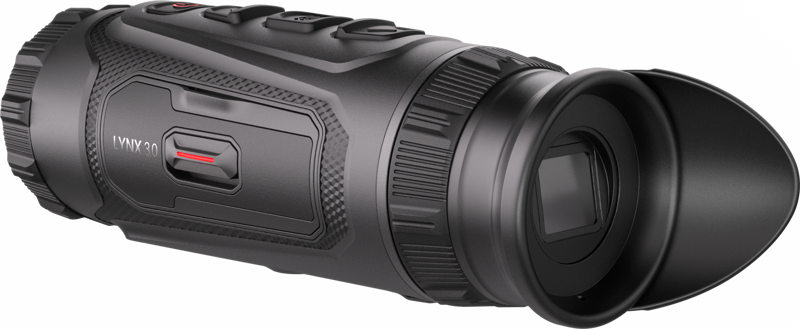

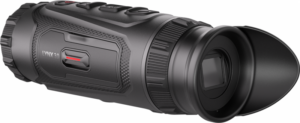

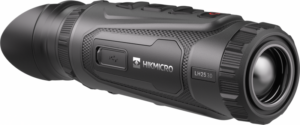

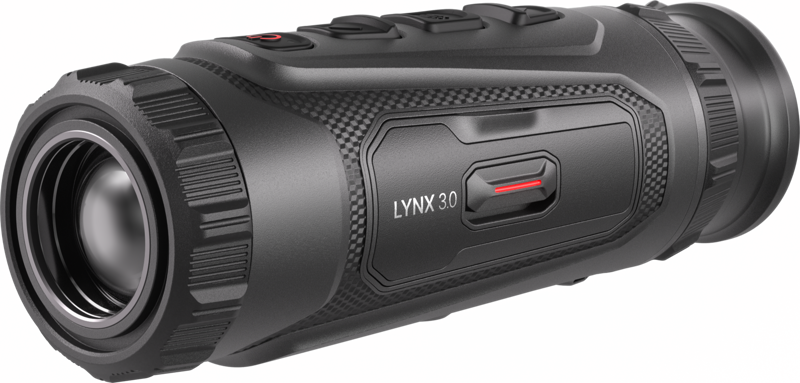

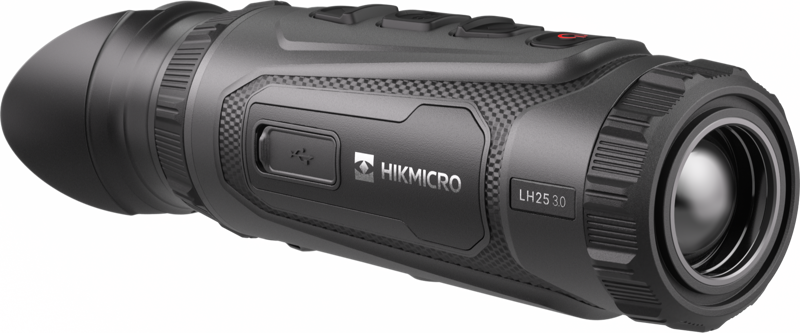

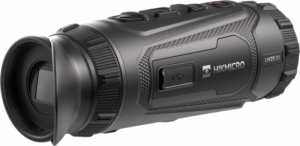

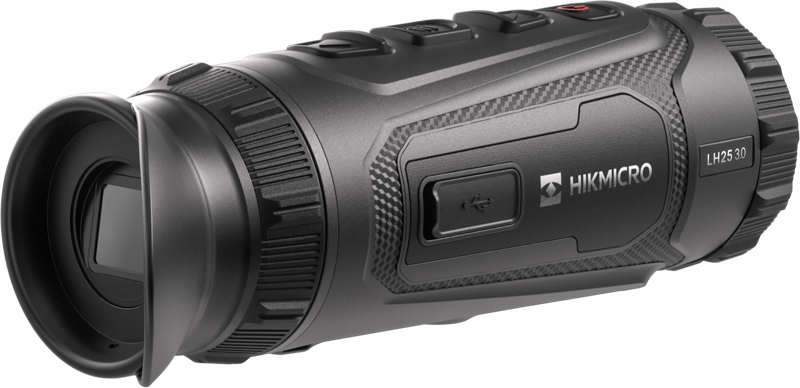

HIKMICRO Lynx LH25 3.0 Thermal Monocular

HIKMICRO Lynx LH25 3.0 is a monocular designed for long-range thermal detection in open terrain and professional observation. It is suitable for surveillance, wildlife observation, boating, hunting and birdwatching, when targets need to be detected even in challenging lighting and weather conditions.

For long-range thermal detection

The 384×288 resolution VOx thermal sensor and 25 mm f/1.0 germanium lens support target detection from distances of up to 1,200 metres. The 2.5x base magnification can be digitally increased to 20x for viewing more distant targets.

Detailed viewing and adjustable picture

The 0.49-inch AMOLED viewfinder offers a 1920×1080 resolution image, and dioptric adjustment helps adapt the view to the user's vision. Multiple thermal palettes, as well as brightness, contrast and hue adjustments, help distinguish the target from the surroundings in various situations.

Built for demanding conditions

With IP67 protection, an operating temperature range of -30…+45 °C and a weight of 328.5 grams, the device is suitable for field use. The built-in 64 GB memory allows for storage without the need for a separate memory card.

Main features

• Detects heat sources from distances of up to 1,200 metres in open terrain.
• The 25 mm f/1.0 germanium lens collects thermal radiation efficiently for long-range observation.
• 2.5× base magnification and 8× digital zoom expand the magnification to a level of 20×.
• The 384×288 VOx thermal sensor produces a 50 Hz thermal image for smooth observation.
• The AMOLED viewfinder and dioptre adjustment support prolonged viewing without a separate screen.
• Black Hot, White Hot, Red Hot, Fusion, Red Monochrome and Green Monochrome palettes for different observation situations.
• The HIKMICRO Shutterless Imaging System enables uninterrupted observation.
• The IP67-rated construction and wide operating temperature range support outdoor use in variable conditions.

Technical specifications

• Item number: 134887
• Manufacturer's part number: 308101501
• EAN: 6974004648718
• Thermal sensor: VOx uncooled, 384×288, 12 µm
• Refresh rate: 50 Hz
• Wavelength range: 8–14 µm
• Thermal sensitivity NETD: less than 15 mK (@25 °C, F#=1.0)
• Lens: 25 mm f/1.0 germanium
• Magnification: 2.5–20×
• Digital zoom: 8×
• Detection range: 1200 m
• Field of view: 10.5° × 6.4°
• Field of view at 100 m: 18.4 m × 11.2 m
• Closest focusing distance: 3 m
• Display: 0.49-inch AMOLED, 1920×1080
• Dioptric adjustment: -5 D to +3 D
• Exit pupil: 6 mm
• Eye relief: 20 mm
• Eyecups: twist-up, 3-position
• Memory: internal 64 GB
• Stand adapter: yes
• Battery type: Lithium
• Enclosure class: IP67
• Operating temperature: -30…+45 °C
• Dimensions: 158.4 × 53.6 × 49.5 mm
• Weight: 328.5 g
