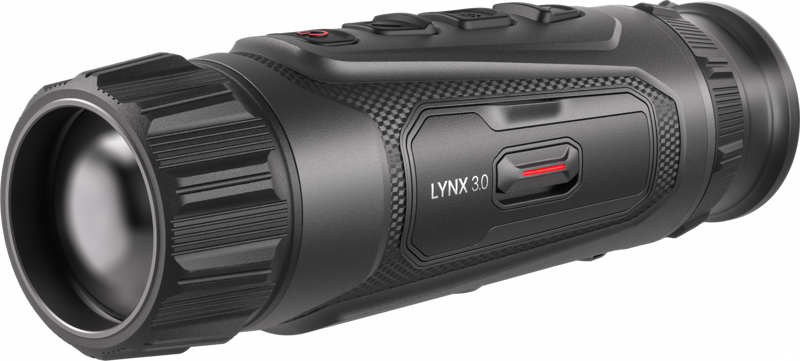

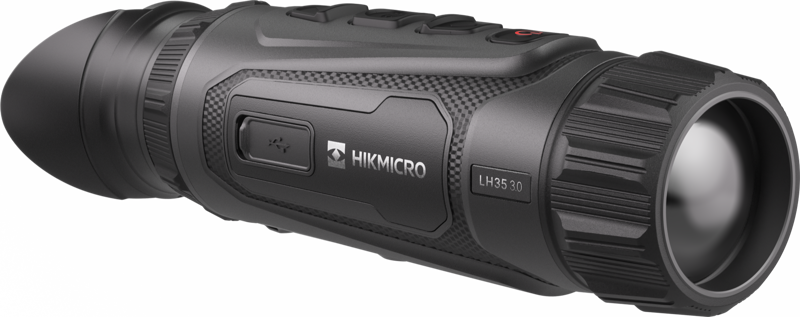

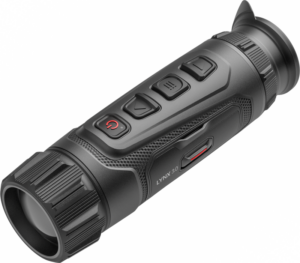

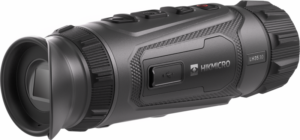

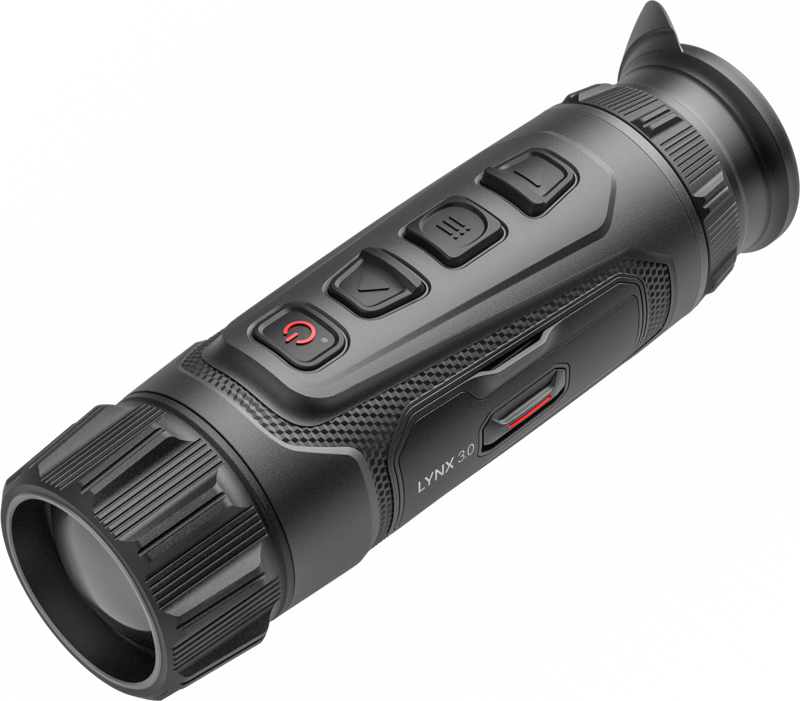

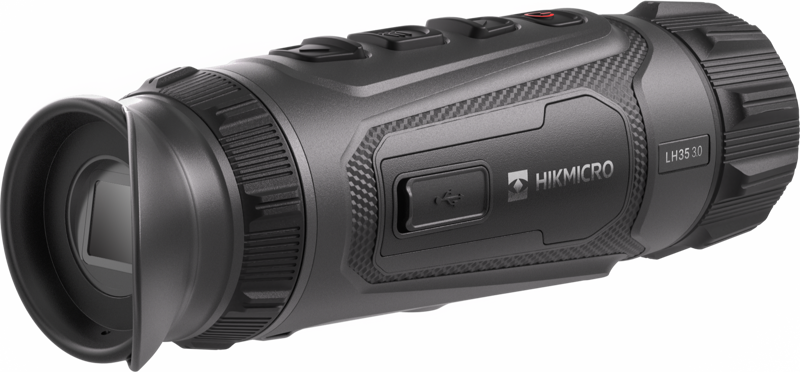

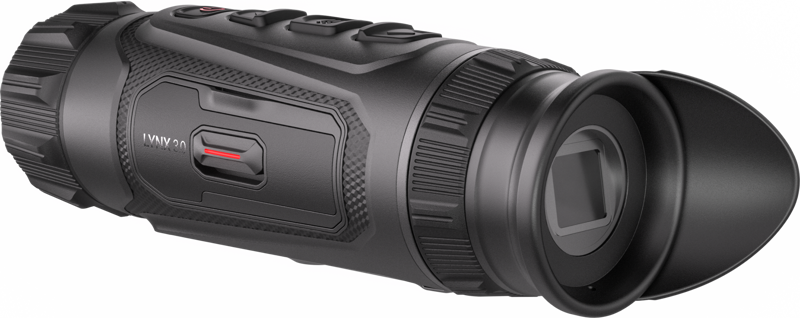

HIKMICRO Lynx LH35 3.0 thermal imaging camera

HIKMICRO Lynx LH35 3.0 is a thermal monocular designed for demanding observation in hunting, surveillance, wildlife observation, boating and birdwatching. The 35 mm f/1.0 germanium lens, 384×288 thermal sensor and a detection range of up to 1,800 metres support medium and long-range use.

Long-range thermal detection

The 35 mm f/1.0 lens offers a 3.4x optical magnification, which can be increased to 27.2x with digital zoom. The manual focus ring allows focusing from 3.5 metres onwards, and the 7.5° × 4.6° field of view helps with target acquisition as the distance increases.

Accurate and uninterrupted thermal image

The VOx uncooled thermal sensor operates at a 50 Hz frame rate and an 8–14 μm waveband. A NETD sensitivity of less than 15 mK, alongside HIKMICRO HSIS, Image Pro 3.0 and Zoom Pro technologies, enhances image detail for observation.

Viewing modes for different situations

The AMOLED viewfinder has a 1920×1080 resolution and a dioptre adjustment range of -5D to +3D. The Black Hot, White Hot, Red Hot, Fusion, Red Monochrome and Green Monochrome palettes provide options for highlighting the target in various environments.

Main features

• Suitable for hunting, surveillance, nature observation, boating and birdwatching
• 35 mm f/1.0 germanium lens supports long-range thermal detection
• Up to 1800 metres detection range for mid- and long-range use
• 3.4× optical magnification and 8× digital zoom bring the subject closer
• Multiple thermal palettes make it easier to distinguish the target from different backgrounds
• 1920×1080 AMOLED viewfinder and dioptre adjustment for comfortable viewing
• IP67 rating and -30 to +45 °C operating temperature for demanding conditions
• Internal 64 GB storage capacity for saving observations

Technical specifications

• Thermal sensor: VOx, uncooled
• Sensor resolution: 384×288
• Pixel pitch: 12 μm
• Refresh rate: 50 Hz
• Wavelength range: 8–14 μm
• NETD thermal sensitivity: less than 15 mK (@25 °C, F#=1.0)
• Lens: 35 mm f/1.0
• Magnification: 3.4×–27.2×
• Digital zoom: 8×
• Closest focusing distance: 3.5 m
• Detection range: 1800 m
• Field of view: 7.5° × 4.6°
• Field of view at 100 m: 13.1 × 8.0 m
• Display: 0.49-inch AMOLED
• Screen resolution: 1920×1080
• Diopter adjustment: -5D – +3D
• Eye relief: 20 mm
• Eyecup: flip-up, 3-position
• Storage capacity: 64 GB internal
• Stand adapter: yes
• Protection class: IP67
• Dimensions: 169.6 × 53.6 × 49.5 mm
• Weight: 354.5 g
• Battery type: lithium
• Operating temperature: -30 to +45 °C
• Product number: 134888
• Manufacturer's part number: 308101509
• EAN: 6974004648725
